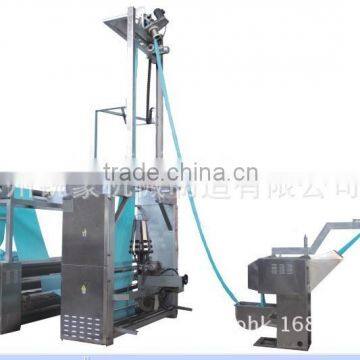

VS-D Rope Opener Machines for Tubular Fabric with slitting function
USD $13,000 - $45,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
-
VS-D Automatic Rope Opener Machine With Slitting Function
-
RH-400 Fabric Rolling Machine with hot cutter
-
MH-TF Tubular Fabric Reversing Machine
-
Tubular/Cylinder Knitted Fabric Turning/Reversing Machine
-
MT-A Tubular Fabric Inspection Slitting Machine
-
MT-B Tubular Fabric Slitting And Inspection Machine
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | REHOW | |
| Model Number | VS-D | Voltage | 380V | |
| Power(W) | 15KW | Dimension(L*W*H) | L8000*W3500*H6500 | |
| Weight | 1850 KGS | Certification | ce | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Automatic Untwisting and Slitting Machine, Untwisting Machine, Slitting MachineSaving time and cost for user
High quality
VS-D Rope Opener Machines for Tubular Fabric with slitting function
Automatic Untwisting and Slitting Machine,Untwisting Machine,Slitting Machine
Usage:
This Cloth rope opener machine is suitable for stretching and slitting the fabric after dehydration. Dual functions for slitting and stretching fabric after dyeing.
Technical parameters:
| 1 | Width of Roller | 80"~120" |
| 2 | Untwisting Motor | 0.55KW *1 set(reducing motor) |
| 3 | Auto Centering Motor | 0.25KW *2 sets(reducing motor) |
| 4 | Expanding Motor | 0.55KW *2 sets |
| 5 | Transmission Motor | 2.2KW*1set(reducing motor) |
| 6 | Releasing Motor | 1.5KW*1 set |
| 7 | Working Speed | 0~80yards/min. |
| 8 | Transmission Roller | 160mm×3 pieces |
| 9 | Total Height | 6.5m |
Characteristics:
1. New type untwisting device can be applicable to various fabrics, including ultrathin and silky fabrics too.
2. Equipped with photoelectric auto. centering device to preserve fabrics position.
3. Speed of main motor is adjustable via inverter. Normal and reversible rotation.
Welcome to inquire our VS-D Rope Opener Machines for Tubular Fabric with slitting function!
