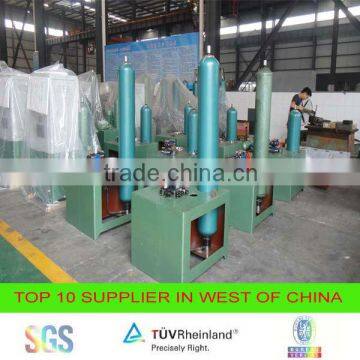

speed governor system

Specifications

High stability Programmable Logic Controller (PLC) is employed

as controller,High oil pressure devices, digital and standardizationdesign are adopted,It takes high quality standardized digital hydraulic valves as actuators, so it is easy for replacement and system update.

hydropower plant design

Reaction turbines

Reaction turbines are acted on by water, which changes pressure as it moves through the turbine and gives up its energy. They must be encased to contain the water pressure (or suction), or they must be fully submerged in the water flow.

Newton's third law describes the transfer of energy for reaction turbines.

Most water turbines in use are reaction turbines and are used in low (<30m/98 ft) and medium (30-300m/98–984 ft) head applications. In reaction turbine pressure drop occurs in both fixed and moving blades.

Impulse turbines

Impulse turbines change the velocity of a water jet. The jet pushes on the turbine's curved blades which changes the direction of the flow. The resulting change in momentum (impulse) causes a force on the turbine blades. Since the turbine is spinning, the force acts through a distance (work) and the diverted water flow is left with diminished energy.

Prior to hitting the turbine blades, the water's pressure (potential energy) is converted to kinetic energy by a nozzle and focused on the turbine. No pressure change occurs at the turbine blades, and the turbine doesn't require a housing for operation.

Newton's second law describes the transfer of energy for impulse turbines.

Impulse turbines are often used in very high (>300m/984 ft) head applications .

Company brief

1.water turbine generator

 We specialize in water turbine manufacturing for over 40years. The water turbines we supplies severs a wide range of costumers in and out of China.

2.easy installation & operation

We have a wide range of water turbines for building hydraulic generator systems.It is designed of

easy installation and operation.

3.high efficacy

The water powder generator can be applied in varies place and environment.Our water turbine is produced with high efficacy via our long years experience of research and development.

4. Oversea project

    we have exported water turbine generator sets to

            Vietnam——April,2007(2*3200KW)

            Peru——November,2007(2*1250KW)

            Burma——December,2008(2*400KW)

            Burma——November,2009(2*200KW)

            Albania——July,2011(2*1250KW,1*630KW,2*400KW)

            Indonensia----August,2012(1X4400KW)

            Satie plant in the republic of Burundi (3X3200KW)

            state power corporation of republic of peru (2X1250KW)

            Bane plant in Tailand (22500KW)

            Easup3 plant in Daklak province, Vietnam (2X2300KW)
