ChinaHome > Products > Shaper Machine > Metal Shaping Machine BC6085

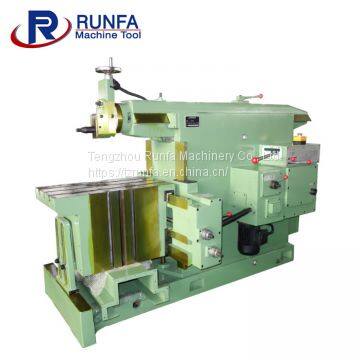

Metal Shaping Machine BC6085
- 50 Set / Sets per Month
- QINGDAO/SHANGHAI
- T/T L/C
- 15 days
You May Like
Product Details
| Brand Name | runfa | Place of Origin | China | |
| Model Number | BC6085 | Certification | CE ISO9001 | |
| After-sales Service Provided | No overseas service provided | Warranty | 12 months | |
| Weight | 2940KG | Dimension(L*W*H) | 2950x1325x1693mm | |
| Voltage | 240V/380V/440V | Rated Power | 5.5 kw | |
| Condition | New |
Product Description
The BC6085 SHAPER/PLANER
The Maximum shaping length 850mm
Model | BC6085 | |
Maximum cutting length(mmin) | 850 | |
Maximum distance from ram bottom to table surface(mm) | 400 | |
Maximum table horizontal travel(mm) | 710 | |
Maximum table vertical travel(mm) | 360 | |
Dimensions of table top surface(L×W)(mm) | 800×450 | |
Travel of tool head(mm) | 160 | |
Swivel of tool head(°) | ±60° | |
Number of ram strokes per minute | 17,24,35,50,70,100 | |
Range of table power feed | horizontel(mm) | 0.25~3 12 |
vertical(mm) | 0.12~1.5 12 | |
Rapid feed of table | horizontel(mm) | 1.2 |
vertical(mm) | 0.58 | |
Width of central T-slot of table(mm) | 22 | |
Power of motor(kw) | 5.5 | |
Overall dimensions(L×W×H)(mm) | 2950×1325×1693 | |
Weight(kg) | 2940/3090 | |
