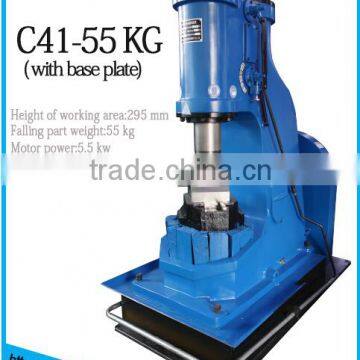

BlackSmith Forging Hammer C41-55KG
- QINGDAO/SHANGHAI/TIANJIN
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | C41-55 | |
| Voltage | 220V/380V/440V | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 1730*083*1935mm | Weight | 2050 kg | |
| Certification | ISO CE | Warranty | 13 Months | |
| After-sales Service Provided | No overseas service provided |
Product Description
Our pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting, it is also used for forge in bolster dies.
Pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer, pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg, 16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 150kg, 250kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
Optional Hammer Dies:
Technical Specifications(WITH BASE PLATE) | |||||
1 | Weight of falling parts | Kg | 55(SEPARATED) | ||
2 | Max. hit energy | Kj | 0.7 | ||
3 | Hit number | min -1 | 230 | ||
4 | Distance from bottom die surface to bottom surface of lead | mm | 295 | ||
5 | Tup axis to hammer body | mm | 280 | ||
6 | Dimension of top&bottom die surface | mm | 120x55 | ||
7 | Maximum forged | Round piece | mm | 68 | |
Square piece | mm | 52x52 | |||
88 |
Motor | Type | -- |
| |
Rate power | kw | 5.5 | |||
Speed | r.p.m | 1440 | |||
9 | Overall dimension | mm | 1730x803x1935 | ||
10 | Total Weight | kg | 2050 | ||
