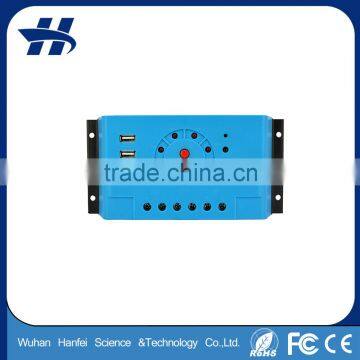

Factory Price 12v 24v PWM Solar Charger Controller 30A Intelligent Solar Controller with CE ROHS

FOB Price

US$ 11.5 - 13.5 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China	Brand Name	Hanf
Model Number	CK30U	Application	Charger Controller
Rated Voltage	Other, 12v 24v	Maximum Current	30A

Product Description

Factory Price 12v 24v PWM Solar Charger Controller 30A Intelligent Solar Controller with CE ROHS

Product Description

This series is a new series of intelligent multi-purpose solar charge controllers. Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably. Meanwhile, parameters are explicitly displayed. Most parameter values can be set to meet various applications.

Ⅰ :product parameters

Product size:188mm*95mm*40mm
1pc/box,40pcs/carton
Carton size:545mm*425mm*205mm
CBM/ctn:0.046
G.W: 16.8kg

Ⅱ : product details

Ⅲ :Features:

1. Vivid LED indicators show system battery capacity, charging and discharging state of battery. 2. Protection functions such as overcharging, over discharging, overload and reverse connection. 3. PWM charging increases charging efficiency by 3% to 6%, compared with non-PWM charging. 4. The parameters of charging and discharging are preset, so no need to adjust the parameters. (Special parameters need to be advised in advance.)

5. USB output function.

Technical data

System voltage	12V/24V (Auto)		Low voltage protection	10.7V/21.4V
Rated current	20	30A	Low voltage reconnecting	12.6V/25.2V
No load loss	≤12.5mA (USB disconnect)		Overloading	≥1.2rated current, 60s ≥1.5rated current, 10s ≥1.8*rated current, 0.2s
Charging mode	PWM		USB output	5V, 1A
Float charging voltage	13.8V/27.6V		Installing cables size	≤6mm2	≤16mm2
Absorption charging voltage	14.4V/28.8V(lasting time: 2 hours)		Working temperature	-20℃ ~ 50℃
Charging/Discharging circuit voltage drop	<0.22V (<0.12V)		Dimension (L x W x H)	188mm x 95mm x 40mm
			Net weight	340g	345g

Main products

Product application

Company Information

About Us

FAQ

1 Q:Do you have your own factory? Can we visit?
1 A:Absolutely.You are always welcomed to visit our factory.

2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.

3 Q:What certificate do you have?
3 A:We have CE,ROHS.

4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.

5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.

6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.

7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.

8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
