Product Details

Place of Origin	Hubei, China	Brand Name	Hanf
Model Number	SK70D	Application	Charger Controller
Rated Voltage	Other, 12V/24V Auto	Maximum Current	70A

Product Description

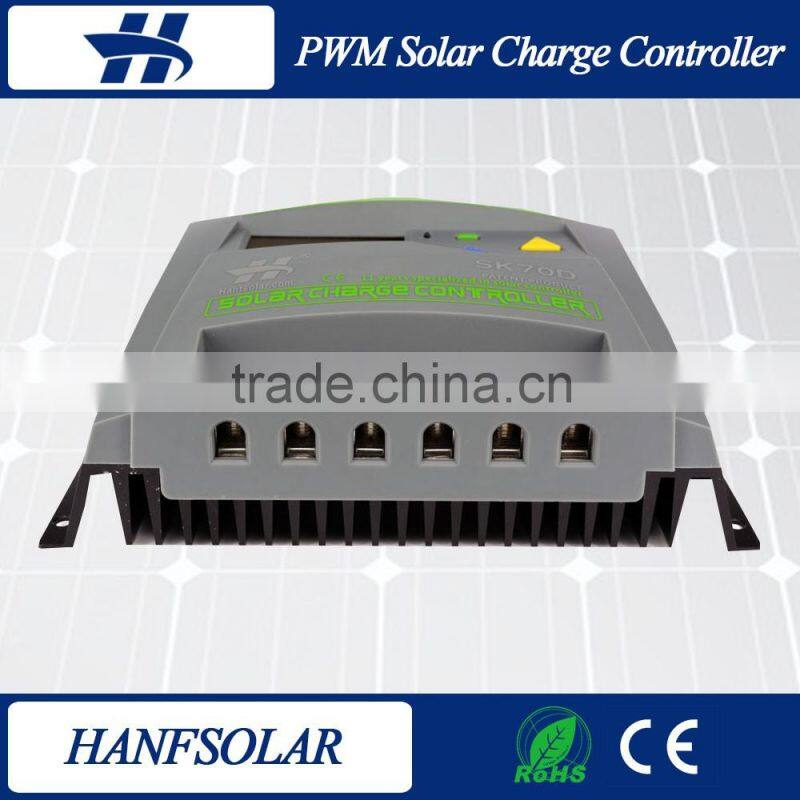

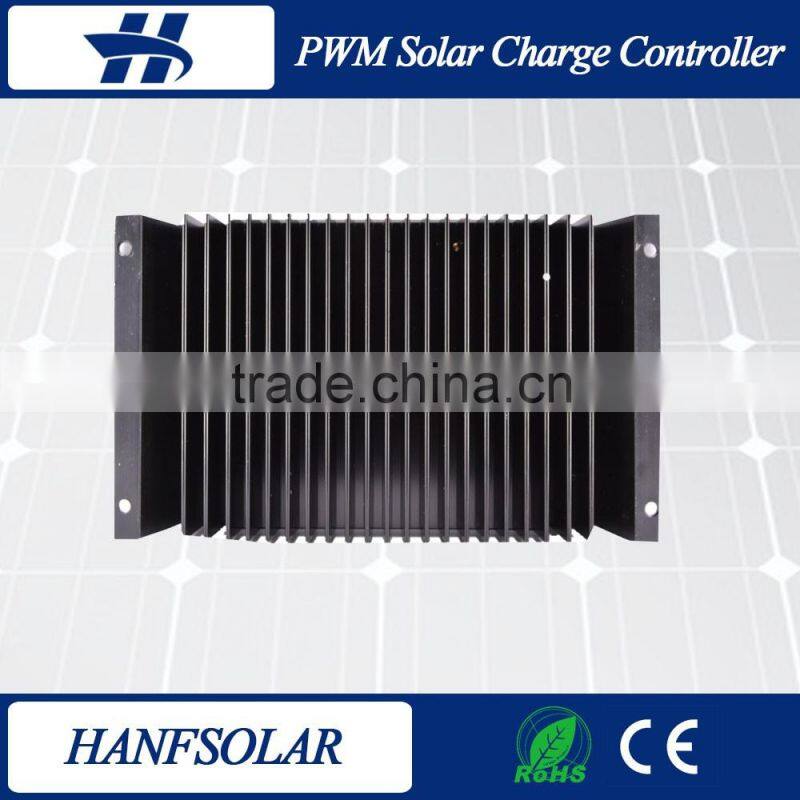

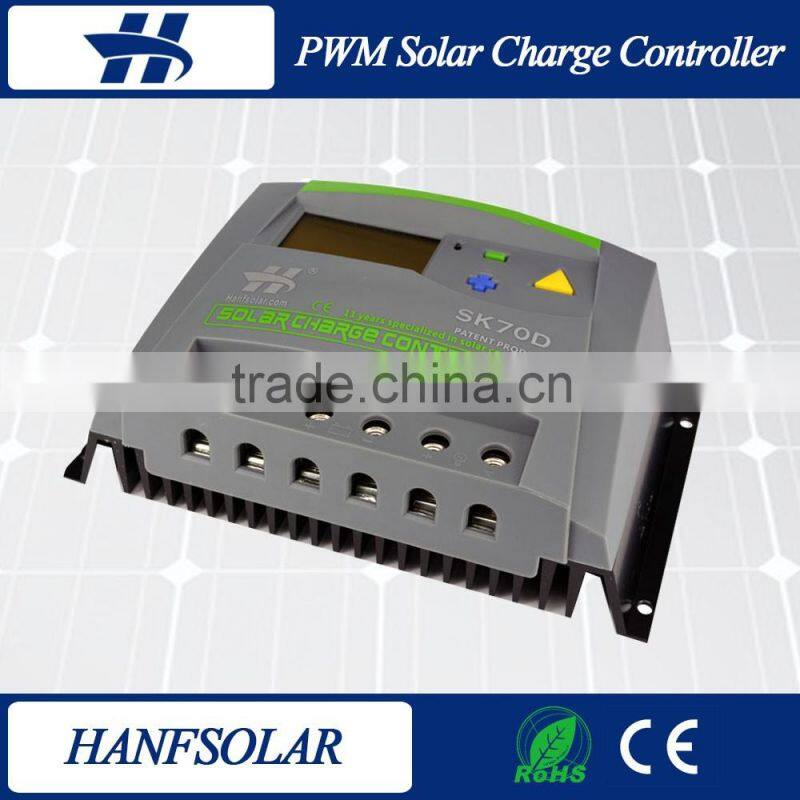

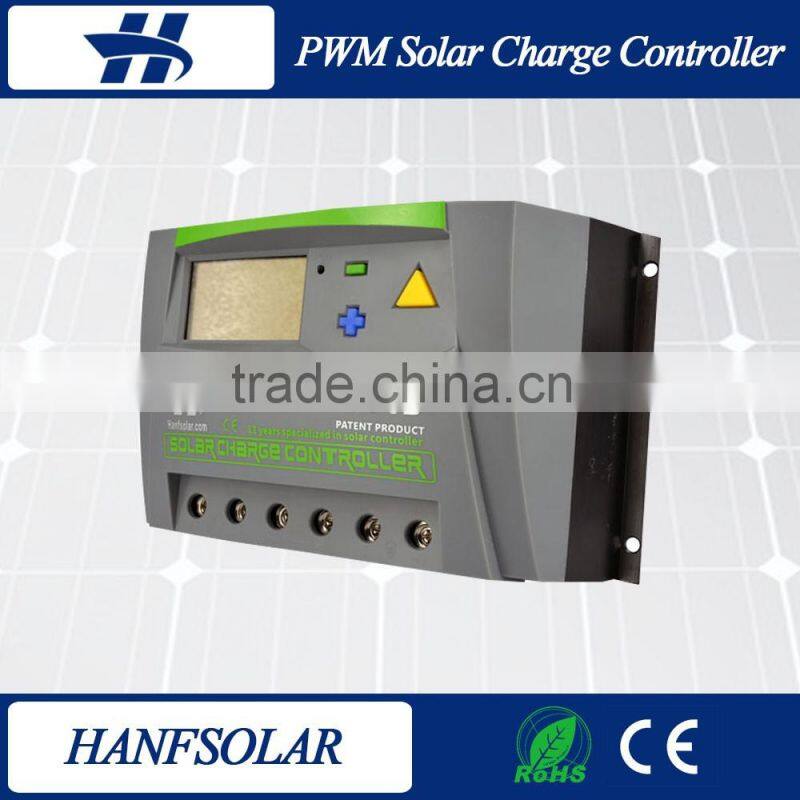

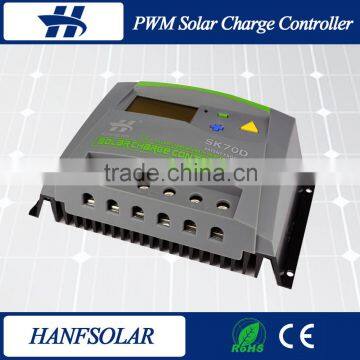

eraser shaped like game controller manual pwm solar charge controller

Product Description

This series is a new series of intelligent multi-purpose solar charge controllers. Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably. Meanwhile, parameters are explicitly displayed. Most parameter values can be set to meet various applications.

Product size:220*133*77mm
Each carton sets:12
Carton size:490mm*465mm*190mm
Single tank volume:0.046m3
Gross weight:17.8kg

Ⅰ Features

1.Intelligent, high-efficient PWM charging mode in series connection.

2.Multi-stage charging mode

3.System voltage identification: automatic identification, fixed 12V, fixed 24V, or fixed 48V.

4.The charging parameters for Gel, Sealed and Flooded batteries are preset plus adjustable “User” battery type for customization.
5.Charging and discharging parameters are adjustable.
6.Temperature compensation is applied.
7.Various controlling mode for load, regular control mode, light control mode, light control with switch-off point at night& switch-on point before dawn mode, self-timing control mode.
8.LCD presents real-time controller working status and related parameters explicitly.
9.Smart backlit function (optional).

10.Recording for Ah of charging and discharging.

11.Alternative communication, RJ45 connection port, RS232, RS485 and standard Modbus communication protocol (optional).

12.Temperature compensation is applied.

13.Protection against reverse connected solar panel or batteries.

14.Protection against reverse discharge of battery
15.Protection against input over-current from solar panel, over-current of load, overheats.

Ⅱ Technical data

Model	SK50D/60D/70D/80D	SK5048D/6048D/7048D/8048D
Input system
Solar input voltage	≤50V	≤100V
Rated charging current	50A/60A/70A/80A
Output system
System voltage	12V/24V Auto recognized	48V
Over-voltage protection of battery	16.0V×1/×2/×4
Rated discharge current	50A/60A (7024/8024/7048/8048 no discharge control)
Self-consumption	≤13mA
Charge loop voltage drop	≤0.24V	≤0.30V
Discharge loop voltage drop	≤ 0.12V	≤ 0.16V
Charging Mode	bulk, absorption, float and equalization
Float charging voltage	13.8(13V~15V)×1/×2/×4
Absorption charging voltage	14.4V(13V~15V) ×1/×2/×4
Duration of absorption charging	2hs(0h~3h)
Equalized charging voltage*	14.6V(13V~15.5V) ×1/×2/×4
Duration of equalized charging	2hs
LVD	10.8V(10V~14V) ×1/×2/×4
LVR	12.6V(10V~14V) ×1/×2/×4
Load Mode	Regular controller mode (Mode 1) Light control with switch-off point at night and switch-on point before dawn (Mode 2) Light control mode (Mode 3) Self-timing switch on/off (Mode 4)
Light control voltage	5V(1V~10V) ×1/×2/×4
Battery type	GEL,Sealed,Flooded lead-acid battery (default is User-defined)
