12V 24V 50A Cheap Price Solar Charger Controller Manual PWM Solar Charge Controller

FOB Price

US$ 26 - 30.5 / Carton

1 Carton(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China	Brand Name	Hanf
Model Number	CK50D	Application	Charger Controller
Rated Voltage	Other, 12v 24v	Maximum Current	50A

Product Description

12V 24V 50A cheap price solar charger controller manual PWM Solar Charge Controller

Product Description

This series is a new series of intelligent multi-purpose solar charge controllers. Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably. Meanwhile, parameters are explicitly displayed. Most parameter values can be set to meet various applications.

Ⅰ :product parameters

product size:188mm*125mm*48.5mm
1pc/box,24pcs/carton
Carton size:545mm*425mm*205mm
CBM/ctn:0.047
G.M:16.8kg

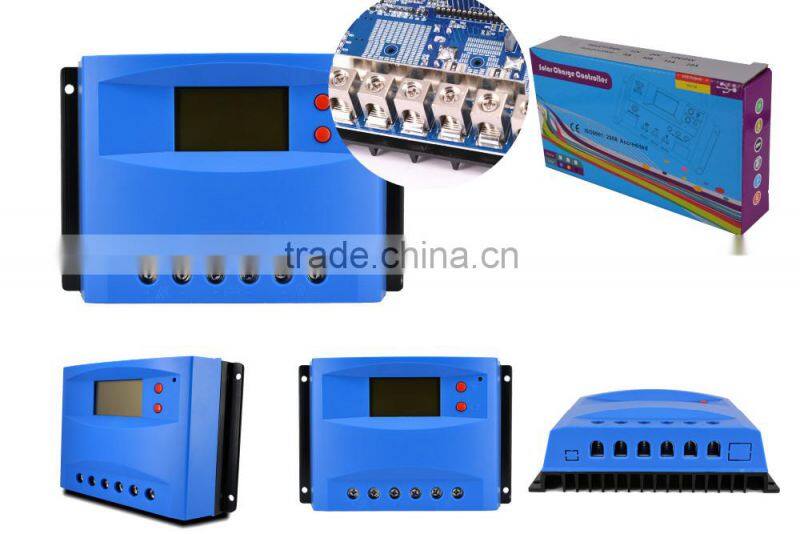

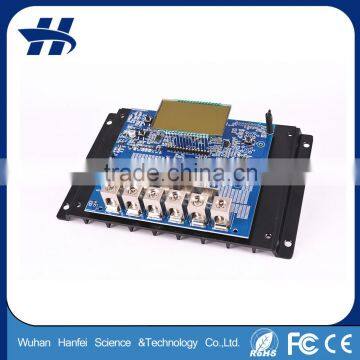

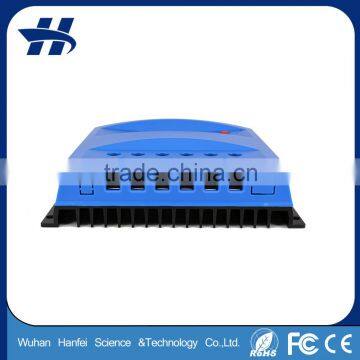

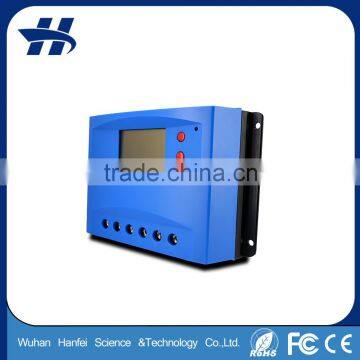

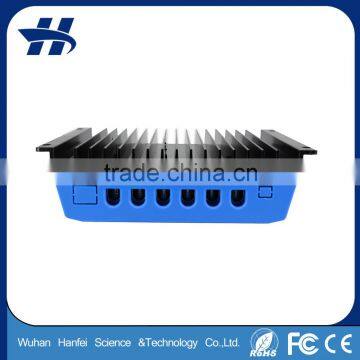

Ⅱ : product details

Function

(1) Multi-stage PWM charging mode.

(2) Preset charging parameters for different battery types.

(3) Charging and discharging parameters are adjustable.

(4)Temperature compensation is applied.

(5) Various controlling mode for load.

(6) Protection against reverse connected solar panel.

(7)Protection against under-voltage, over-voltage, reverses connection and reverse discharge of battery.

(8)Protection against over-current of load.

(9)Protection against internal over-heat.

Technical data

Model	40D	50D	60D	4048D	5048D	6048D
Input
PV voltage	≤50V			≤100V
Rated Charge Current	40A	50A	60A	40A	50A	60A
Output
System	12V/24V Auto			48V
HVD	16.00V×1/×2/×4(0.5V)
Rated Discharge Current	40A	50A	60A	40A	50A	60A
No-load Loss	≤14mA			≤16mA
Charge Loop Voltage Drop	≤0.22V			≤0.25V
Discharge Loop Voltage Drop	≤ 0.12V			≤0.12V
Charging Mode	PWM Multi-stage(bulk, absorption,float)
Float Charge Voltage	13.8(12.8V~14.2V)×1/×2/×4
Absorption Charge Voltage	14.4V(13.6V~15.2V) ×1/×2/×4
Duration of Absorption Charge	2hs
LVD	10.8V(10.5V~12V) ×1/×2/×4
LVR	12.6V(11.5V~13V) ×1/×2/×4
Load Working Mode	Regular Controller Mode Light Control with switch-off point at night Light control Mode
Light Control Voltage	5V ×1/×2/×4
Battery Type	GEL, SLD, FLD and USr(default)
Other
Man-machine interface	LCD,2 buttons
Heat Sink	AL alloy
Wiring	PCB terminal, ≤25mm²
Working Temperature	-20 ~ +55 °C
Storage Temperature	-30 ~ +80 °C
Working humidity	10% ~ 90%, No Condensation
Dimension	40A & 50A(18812548.5mm) 60A(18712556mm)
Net weight	562g		701g	564g		703g
IP Code	IP30

Main products

Product application

Company Information

About Us

FAQ

1 Q:Do you have your own factory? Can we visit?
1 A:Absolutely.You are always welcomed to visit our factory.

2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.

3 Q:What certificate do you have?
3 A:We have CE,ROHS.

4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.

5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.

6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.

7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.

8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
