China PBX Factory Desktop Gsm With Pabx for Hotel System

Specifications

China PBX factory desktop gsm with pabx for hotel system/ desktop gsm with witi hotspot/ tablet speakers

PBX System Info

(5D)-2 32 Lines 192 exts at most.

PBX System Function

1. Multi-mode Call Transfer;
2. Built-in 6-duration Out-Going Message;
3. Built-in Caller ID function for intercom and outside Line number and number can be transferred display again and again.. An incoming call number can be displayed at 5 extensions at same time;

4. Economical Code auto-route

System can automatically switch to economical route code provided by different Telecom Carriers;

5. Select a CO Line directly without dialing digit  9;

6. Day/Night Service manually;

7. Flexible Extension Numbering;

8. 255 groups Walking Account Code;

9. Account available in different extensions with different class of service authority;

10. Manger/Secretary Call-group;

11. Conference Call;

12. Hot Dialing;

You can store one CO line number or extension number in the extension. When the user picks up the call without dialing in 5 seconds, system will dial the stored number automatically;

13. Auto. call-back on busy

When make outside or intercom call but busy, system can call back to this extension automatically when the desired CO Line or desired extension is free;

14. Multi Answer Mode

Including Auto-attendance and Operator manually , and it can connect external DISA recorder or voicemail too;

15. Call Forward

16. Setting Operator

Three operators can be set. Thus when operator 1 is busy ,call will ring at operator 2, operator 3 etc;

17. Call Pick-up

User can pick up his call at any another extension by inputting two digits;

18. Conversation Time Alarm

19. Interrupt and disconnect an outside call

Specifications

 POWER SUPPLY:

Power supply voltage: 110VAC or 220 VAC,50/60 Hz

Maximum power consumption: WS824(5D)-1(85W), WS824(5D)-2(110W),WS824(5D)-3(150W), WS824(8D)350W

Cross-talk attenuation: >70db

Transmission loss:<1db

ENVIRONMENTAL LIMITS

Operating temperatures: 0°C to 45°C (32°F to 113°F)

Operating humidity: 10% to 95% without condensation

CABLE REQUIREMENTS

Four-wire Key phone: < 100m(impedance<22.5Ω)

Two-wire Key phone: (2 pairs twisted wire 0.5@, impedance<200Ω)

Single line phone: < 1,000m(2 pairs twisted wire 0.4@, impedance<225Ω)

Connect with PC,connecting length:<30m

SOUND AMPLIFACITON OUTPUT

Output impedance:600Ω

Output audio level:250mV.

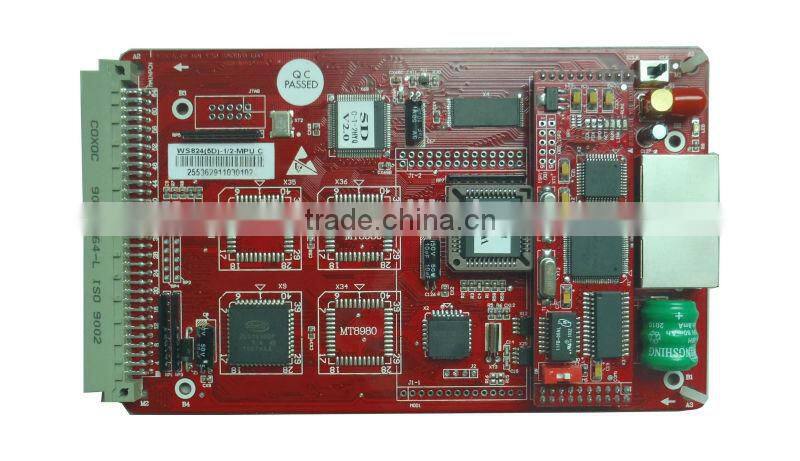

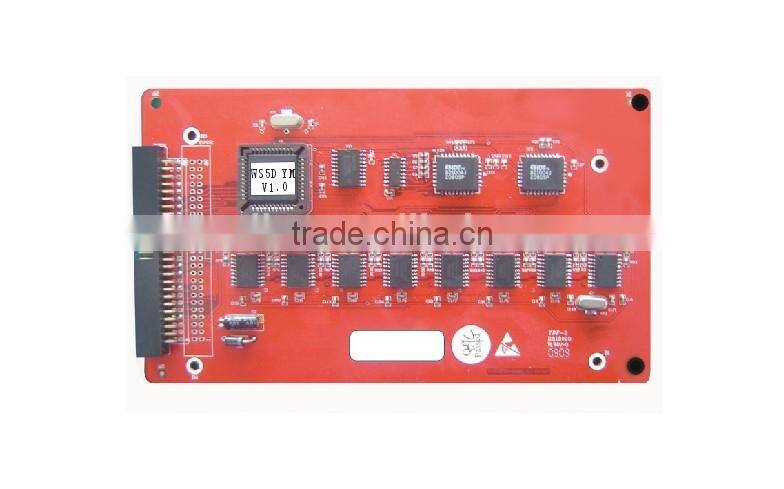

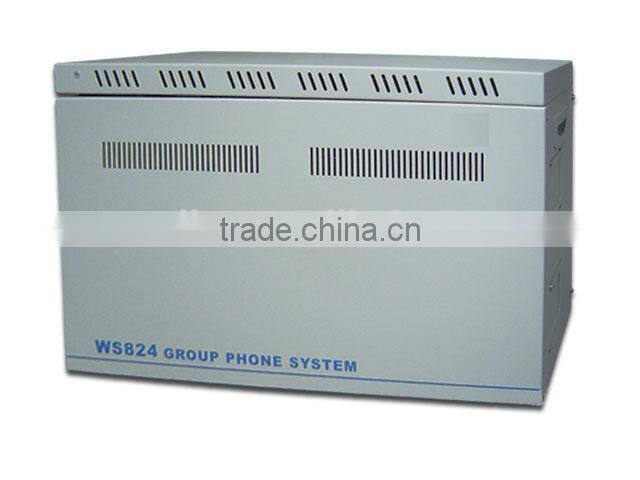

Detail Picture
