Novelty Wall Mounted Telephone for Pabx System

novelty wall mounted telephone for pabx system

WS824 Key Phone fully show the superiority, excellent quality and the super powerful function.

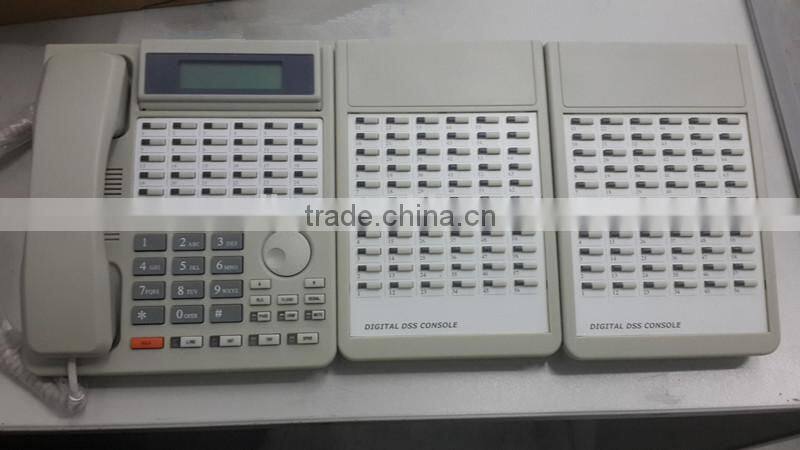

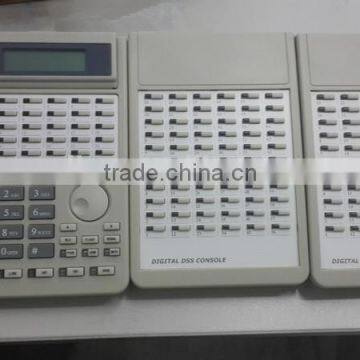

With 30 Direct Keys, enable to be connected with 2 DSS with 64 keys.

1.Adopted STN display module, with good view point, excellent contrast, double-row show.

2.Tine and the number of current telephone and incoming of intercom numbers.

3.With one-touch dialing feature for intercom/Outgoing Call, Call Transfer, Call pickup, paging.

4.Function of Key Phone-Hand-free, Redial, Conference, Hold, Memory, Monitor, and disconnect outside line, save and check 50 incoming call numbers. When connected with Key Phone, can monitor all extension and CO Lines Status.

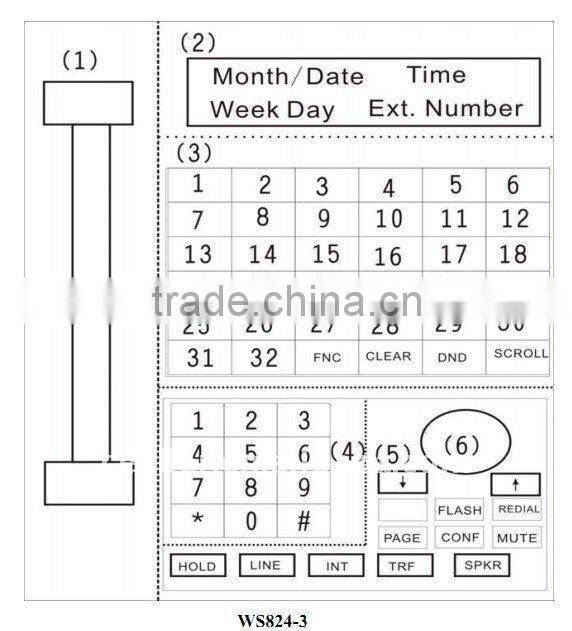

PANEL DIAGRAM

(1)Handset;
(2)LCD WS824-3screen with two-row display and 16 digits,
including: Date and time, incoming call ID, conversation time,
program content, call information, charge display and extension
number;
(3) Other function keys and programming keys;

 “1”—“30” __ programming keys, ,can also be programmed as
extension keys and function keys;
 “31” __ PAGE UP”- for forwarding to check incoming call number;
 “32” __“PAGE DOWN”- for back warding to check incoming c
number;
“FNC” __ for status checking and system programming usage;
“CLEAR “__for clearing the content of checking and programming.
Also for exiting from the checking or programming stat
“DND” __ used for do not disturb and forwarding;
“SCROLL” __The switch of the DSS;
(4) Dial Panel;
(5) Special Function Key:
“HOLD” __ for Co. Line holding.
“LINE ”– for fetch a free Co. line.
“INT”- for internal calling
“TRF” __ used for the Co. line and internal conversation transferring
“SPKR” __For making a conversation on hook off.
“PAGE”__For internal and loudspeaker paging. (No the function
WS824(3) and (10) )
“CONF” __used when phone meeting required.
“MUTE”—For muting the calling party during conversation.
“FLASH” __ for Co. Line flash.
“REDIAL”__ for the last number redialing
“  ” - Increase the volume of hand free, handset, and ringing.
“    ” __ Decrease the volume of hand free, handset, and ringing.
(6)The adjustment of the brightness of the LCD display;

10pcs for one carton Giftbox size:27X18X7cm

Carton size: 56X40X21cm

Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
