China Telephone Set Price With 21 Function Keys WS824-2C

Specifications

 ROHS standard wholesaler telephone set low price
high quality we promise
factory low price
test order available

Main Function:

1. Using STN graphic display module LCD, 30 characters of double line English display, which can display the date, time, extension number, time of call, call information, calling state, the programmed state.

2. Direct key 1-21, using LED two-color ( red / green ) indicator light, can be set as outside port number, extension port number, outline number, so you just need press a button to achieve a variety of functions, such as the call outside, call extension, call transfer and helping others to pick up the call.

3. Incoming call indicator: large incoming call indicator, even at a distance or a noisy environment you can also know which phone is ringing.

4. Incoming number Inquiries: Just through a special inquiry key, you can check the calls, as much as 50 groups caller ID can be stored.

5. Transfer key function ( TRFR ): you can transfer the calls to other extensions.. In the standby mode, pressing this key, it can be switched to night work mode ( connection on port 001 effective ).

6. Mute key function ( MUTE ): you can close the microphone ( including a handle and a hands-free microphone )while in conversation state, indicator lights on mute. In the standby state indicator light means open automatic answering function.

7. Sound volume(hands-free, handle, ringer volume) can be adjusted quickly by Volume control key.

8. Conference key (CONF), you can quickly convened a meeting, which can achieve 2 outside ext 6 total 8 parties conference or pure inside 6 parties conference.

9. Paging ( PAGE ): broadcast to the external speaker and key phone in system.

10. Hold ( HOLD ): confirmation to the program change. Hold on the talking outside line.

11. Check ( CHECK ), remove ( CLEAR ):system programming, key programming.

1.Key Phone installation

Key Phone to the hybrid port in the mainframe. If the line is too short for your environment, you can select a longer line by yourself. Be sure that the wire order in the line must be correct, otherwise the phone will not work.

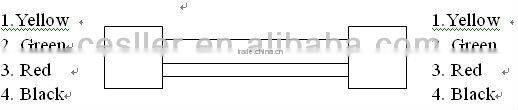

2.Wire order at crystal head

Technical Parameter

1.  Cable Length: less than 100 meters.( 2 pairs twisted wire,0.5 @, resistor < 30Ω ).

2. Voltage : 32±12V DC / 50mA.

3. Environment Humidity: 10% ~ 95%.

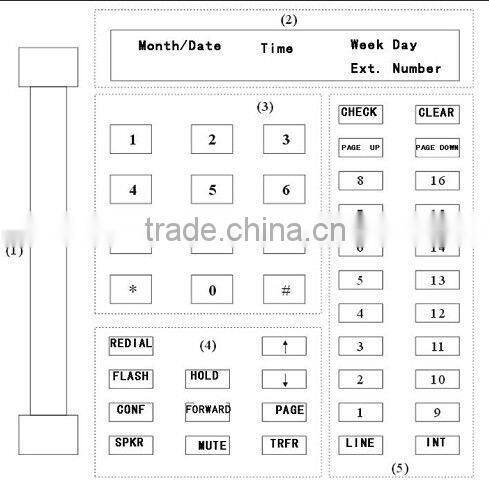

Panel Diagram

                                                                                         WS824-2C Key Phone

(1)Handset;

(2)LCD WS824-2 screen with two-row display(WS824-2,on-row display) and 16 digits, including Date and time, incoming call ID,

conversation time, program content, call information, charge display and extension number;

(3) Dial Panel;

(4)Special Function Key;

“REDIAL”__ for the last number redialing;

“FLASH” __ for Co. Line flash;

“CONF” __used when phone meeting required;

“SPKR” __For making a conversation on hook off.( WS824-2C don’t have the key to make conversation without picking up the hand set.);

“HOLD” __ for Co. Line holding;

“FORWARD” __used for do not disturb and forwarding;

“MUTE”—For muting the calling party during conversation;

“  ” - Increase the volume of hand free, handset, and ringing;

“  ” __Decrease the volume of hand free, handset, and ringing;

“PAGE”__ For internal and loudspeaker paging. (No the function in WS824(3) and (10) );

“TRFR” __ used for the Co. line and internal conversation transferring;

(5) Other function keys and Co. line keys;

“CHECK” __for status checking and system programming usage;

“CLEAR “ – for clearing the content of checking and programming. Also for exiting from the checking or programming status;

“PAGE UP”- for forwarding  to check incoming call number;

“PAGE DOWN”- for back warding to check incoming call number;

“INT”- for internal calling;

“LINE ”– for fetch a free Co. line;

1-16 keys- default as Co. line keys, can also be programmed as extension keys and function keys;
