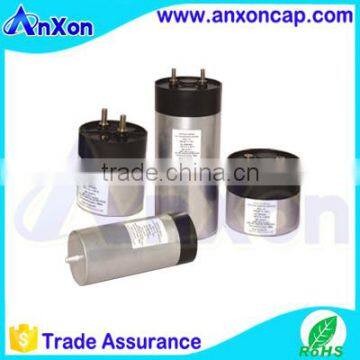

Equivalent to PK16 XC E50.R29-245NT0 900V 2380uF 2380MFD 2400uF 2400MFD 2300uF 2300MFD Power Converter Capacitor

Product name: Equivalent to PK16 XC E50.R29-245NT0 900V 2380uF 2380MFD 2400uF 2400MFD 2300uF 2300MFD Power Converter Capacitor

DC LINK Capacitor 900V 2380uF, DC power capacitor 900VDC 2380MFD, high power DC Capacitor 900V 2400mfd, Capacitor for DC LINK converter, 900V 2400uf inverter capacitor from AnXon Electronic

Choose the best capacitor for any of your power electronics applications, high quality equivalent Direct cross to Electronicon PK16 XI series capcitors provided by AnXon Electronic, 600V, 700V, 800V, 900V, 1100V, 1300V, 1500V, 1800V, 2000V, 2200V, 2400V, 2600V, 2800V, 3000V, 3200V, 3600V, 4000V DC Link capacitors

Specifications

• Capacitance range 50μF to 7400μF

• Rated Voltage 600vdc to 4000vdc

• Capacitance Tolerance ±10%,±5%

• Dissipation factor ( Tan d) 0.0002

• Insulation Resistance MΩ x μF 5,000S @ 25°C (S = MΩ x μF)

• Dielectric strength between terminals (U ) 1.5 x rated voltage for 60 secs T-T

• Test Voltage Terminal to case (U ) Up to 4800 Vac 50 Hz T-c

• Operating Temperature: -40°C to +85°C

Features

• High RMS current

• Low ESR

• Life Expectancy 100,000 Hours

• Fully encapsulated dry construction

• Flame retardant UL94 - V0, ROHS compliant

• Reference Standard: IEC 61071 and IEC 60068

Applications

• DC Link and DC Filter applications in Power converters for

• Uninterruptible power supplies

• Wind power inverters

• Solar power inverters

• Traction and industrial drives.

• Impulse discharge capacitors for magnetizing and welding
