10KV 20PF high voltage ac ceramic capacitor
- Ningbo
- Credit Card
You May Like
-
10KV 100PF 101 Y5P ceramic live line capacitor
-
10KV 200PF live line ac ceramic capacitor
-
10KV 125PF AC live line ceramic capacitor
-
40KV 2000PF 202 plated ceramic disc without screw terminals
-
40KV 2000PF 202 no epoxy coating ceramic capacitor
-
80KV 280PF 281 high voltage doorknob Y5P ceramic capacitor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | AnXon high voltage ac ceramic capacitor | |
| Model Number | CT85 high voltage ac ceramic capacitor | Type | Ceramic Capacitor | |
| Application | Hight Voltage | Package Type | Through Hole | |
| Capacitance | 20PF high voltage ac ceramic capacitor | Rated Voltage | 10KV high voltage ac ceramic capacitor | |
| Operating Temperature | -30C ~ 85C |
Product Description
1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate
6, World class customers experience

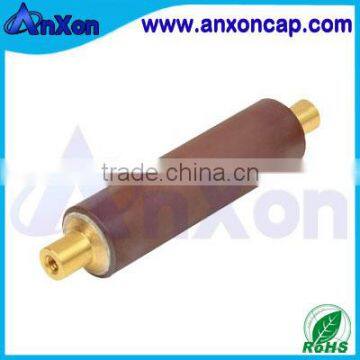

Product Name: 10KV 20PF high voltage ac ceramic capacitor
High Voltage Ceramic Capacitor 10KV 20PF, Molded type Ultra-high Voltage Ceramic Capacitors 10KVAC, 10KVrms 20P high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: | 10KV 20PF, 10KV 20P |
AnXon P/N | AXCHV10P20PKAB |
Tolerance: | K, ±10% |
Type: | Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : | Y5P |
Operating Temperature: | -30C ~ 85C |
Size / Dimension(ΦD×T*H): | D:12mm, H:140mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. | Rated Spec | Testing voltage | Partial discharge | Dissipation factor | Dimension(mm) | ||
kVdc | kV/1min |
| 1kHz/1V | D | H | M | |
AXCHV10DL251KDB | 10KV 250PF | DC15KV AC10KV | AC5KV<5PC | ≤0.1% | 20 | 16 | M4X4 |
AXCHV10DL441KDB | 10KV 440PF | 20 | 20 | M4X4 | |||
AXCHV10DL561KDB | 10KV 560PF | 20 | 20 | M4X4 | |||
AXCHV10DL122KDB | 10KV 1200PF | 24 | 20 | M4X4 | |||
AXCHV10DL282KDB | 10KV 2800PF | 38 | 20 | M4X4 | |||
AXCHV10DL502KDB | 10KV 5000PF | 52 | 20 | M5X4 | |||
AXCHV10DL802KDB | 10KV 8000PF | 58 | 20 | M5X4 | |||
AXCHV10DL103KDB | 10KV 10000PF | 80 | 20 | M5X4 | |||
AXCHV10DL203KDB | 10KV 20000PF | 80 | 20 | M5X4 | |||
HV Capacitor Application Guide
Advantage:
1.Low MOQ: It can meet your testing purpose very well.
2.Custom Design Accepted : We can produce as your design .
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
1.Quality & Service At AnXon, our #1 priority has always been providing our clients with great quality products and superior customer service.
2.Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.
3.Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!
4.Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.
High Quality,Good Price,Fast Delivery,Please send us your RFQ!
