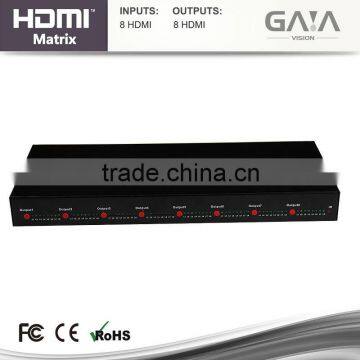

HDMI matrix 8X8 switches with RS232 & IR Remote EDID Learning

The 8x8 HDMI matrix can connect eight HDMI signal sources with the eight displays at the same time.It can easily and freely split or switch eight hdmi signals on eight displays or projectors which compatible with hdmi signal. In addition, connect its port with HDMI cable andamplify the HDMI signal.

The equipment our company produced provide solution for the following applications: such as the place limited of noise, transmission distance and safety, data center control, information distribution, the presentation in conference room, teaching environment and corporate training places.

Eight HDMI signals input to be independently distributed or switched to eight displays which support HDMI signal input

Support HDMI 1.3 and HDCP1.4

Support CEC

Support true color 12 bit

Support Blu-Ray DVD24/50/60fs/HD-DVD/xvYCC

Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-xAC3/DSD

Support signal timing reset

Support AWG26 HDMI standard cable, input up to 15 meters,output up to 20 metes

 Input ports can be controlled by IR Remote Control

 Via RS-232 control,the Machine can upgrade the software, and the input and the output can be switched by computer

No signal loss

12V/5A External Power Supply

HDMI resolution……………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio color format …………………………..…………. …............................12bit

Support audio format……………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max baud rate…….…………….…………………………………………. ……..2.25Gbps

Input and output TMDS signal………….…………………………..…… 0.5~1.5Volts p-p

Input and output DDC signal……………………………………………..5Volts p-p (TTL)

Input cable distance.……………………….……………….………….≤15m HDMI AWG26

Output cable distance…………………………….…...≤20m AWG26 HDMI standard cable

Max working current………………………………………………………………………2.0A

Power adapter format Input………input:AC(50HZ, 60HZ) 100V-240V;output: DC12V/5A

Operating Temperature range……..…………….…………………………… (-15 to +55℃)

Working humidity range………………………….….………5 to 90%RH (No Condensation)

Dimension (L x W x H)……………………………….……………………435*184*46 (mm)

Weight…..………………………………………………………..…………….………..1944g

Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.

Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
