4x2 HDMI HIFI support 4K*2K 3D 1.4V HDMI True Matrix 4x2 4 inputs 2 outputs HDMI Switch 4*2

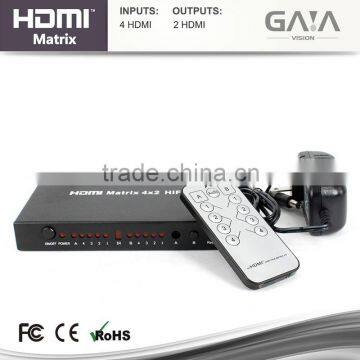

The 4x2 HDMI Matrix can use four HDMI sources to connect two HDMI sinks.The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. The Matrix can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES:

1. 1. Four HDMI input signals switched or split to two HDMI sink devices
   2. Support CEC
   3. Support deep color 30bit, 36bit
   4. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
   5. Digital audio format - DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
   6. Support signal retiming
   7. Support input up to 15 meters 26AWG HDMI standard cable length, output up to 25 meters 26AWG cable length.
   8. Inputs can be switched with the IR remote control,also can be controlled by two buttons.
   9.  It can smartly jump over those input sources which are not connected.
   10. With the smart function of memory, it can come back to the latest status when restarted or reconnected.
   11. No loss of quality.
   12. Installs in minutes.
   13. Need DC5V/2A power supply.



SPECIFICATIONS

·

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….225MHz

Max baudrate…………………….………………….…………………………………..6.75Gbps

Input/Output TMDS signal ………….……………………………….……0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ………………………. ….…..≤15m AWG26 HDMI standard cable

Output cable distance……………………………….…...≤25m AWG26 HDMI standard cable

Max working current…………………………………………………………………………800mA

Power adapter format…………….…..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.

Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.

Shenzhen Gaia Vision Technology Co., Ltd. is specialized research and development production audio & video signal equipment, a provider of innovative audio, video and computer signal processing solutions for commercial and professional consumer in Shenzhen.
