Home > Products > Integration all in one solar street light > 20W Ingrated Solar LED light

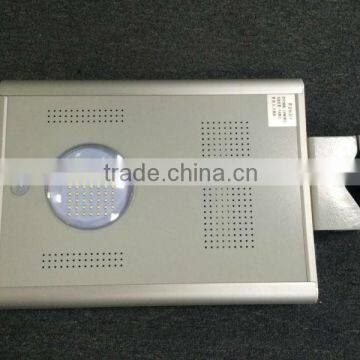

20W Ingrated Solar LED light
- Shanghai
- T/T Credit Card
You May Like
-
The Advantage of latest Solar light.Ingrated Solar LED light
-
40W Integrated All In One Led Solar Street Light with IP65 solar lamp 3day last
-
No.1Ranking Manufacturer among hot sell list Effect integrated light 35W LED Solar Street Light
-
6m 8m 12m Excellent 5w-40W Solar Street Light customise 2015 new model designLED Solar Street Light
-
Customized high quality all-in-one led solar street light with pole 5-12m manufacture price
-
HOT SELL!! 5W-40w light integrated/all in one solar street lamp
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JN-SOLAR | |
| Model Number | JNYT-10W,20W,30W | Type | Other, street light |
Product Description
What caused our solar street light is so popular around the world ?
Inexhaustible energy
Energy-saving
Environment friendly
Fine quality and low price
Always be convenient in the shipment and installation
| Integrated solar street light(10W) | Model:JNYT-10W | |
| Solar panel | Max power | 18V 20W(monocrystalline silicon) |
| Life time | 25 years | |
Battery | Type | Lithium battery 12.8V/15AH |
| Life time | 5 years | |
LED lamp (with sensor) | Max power | 12V 10W |
| LED chip | Bridgelux from USA | |
| Lumen (LM) | 1400-1500lm | |
| Life time | 50000hours | |
| Viewing angle | 120° | |
| Charge time | By sun | 5~6 hours |
| Discharge time | Full power | More than 10 hours |
| Saving mode | More than 20 hours | |
| Working Temperature | Rang(℃) | -30 ℃ ~70℃ |
| Colar temperature | Rang(k) | 6000k |
| Mounting height | Rang(m) | 3-4m |
| Space between light | Rang(m) | 8-10m |
| Main material | Aluminum alloy | |
| Certificate | CE/ROHS/IP65 | |
| Warranty period | 2 years | |
| Packing & Weight | Product size | 540*320*55mm |
| N.W | 5.7kg | |
| Packing box | neutral | |
| Carton size | 560*570*410mm | |
| Q'ty/ctn | 4 set/ctn | |
| G.W | 26.2kg | |
| Integrated solar street light(20W) | Model:JNYT-20W | |
| Solar panel | Max power | 18V 40W(monocrystalline silicon) |
| Life time | 25 years | |
Battery | Type | Lithium battery 12.8V/20AH |
| Life time | 5 years | |
LED lamp (with sensor) | Max power | 12V 20W |
| LED chip | Bridgelux from USA | |
| Lumen (LM) | 2400-2600lm | |
| Life time | 50000hours | |
| Viewing angle | 120° | |
| Charge time | By sun | 7hours (with enough strong shine) |
| Discharge time | Full power | More than 10 hours |
| Saving mode | More than 20 hours | |
| Working Temperature | Rang(℃) | -30 ℃ ~70℃ |
| Colar temperature | Rang(k) | 6000k |
| Mounting height | Rang(m) | 5-6m |
| Space between light | Rang(m) | 18-20m |
| Main material | Aluminum alloy | |
| Certificate | CE/ROHS/IP65 | |
| Warranty period | 2 years | |
| Packing & Weight | Product size | 920*330*140mm |
| N.W | 12.5kg | |
| Packing size | 950*410*210mm | |
| Carton size | 950*410*210mm | |
| Q'ty/ctn | 1 set/ctn | |
| G.W | 15kg | |
- Reply you enquiry in 24Hrs
- Feedback of complaint in 24Hrs
- OEM/ODM are welcomed
- Exclusive agents in local country are welcomed
- 1 year Warranty
Why Choosing JN-SOLAR?
- 10 years solar charger & light Manufacturer.
- Cooperated with many famous brands such as Carrefour, LIdL, Leeds, Freeloader, etc
- High Quality Control with CE, ROHS, FCC approval. BV & BSCI Certificated Factory
- Powerful RD ability ---- All products are belonging our private Mold and Own Design
- 1 year warranty policy, up to now, our product defective rate is under 0.4%
- 500000 kits every month to guarantee the best deliver time
How to install?
Fix the product with a right angle and make sure no shelter on the surface of solar panel.
How to use?
The product is off before delivery in order to avoid discharging during transportation. You can activate it by using the pin or related button or tearing off the film. This is depend on different item, the activate way may differ.
What to do with the rainy day or Cloudy day?
The outdoor solar light is waterproof. You don’t need to worry about it. After fully charged, the capacity of battery can keep the LED working in several rainy/ cloudy days.
If you found the light brightness is down or total off, how to handle?
It prove the power of solar light battery is not enough to support normal lighting, so you need have 2-3 goods sunlight charged, especially in Winter season, the sunlight intensity is much below the standard sunlight (1000kw/m2), it may need more longer time to charge.
Why the charging efficiency is low in winter or cloudy day?
Generally the sunlight standard is 1000kw/m2, in the winter or cloudy day, the sunlight intensity are much lower than standard so the charging efficiency is lower accordingly.
