Home > Products > Check Weigher > Conveyor Belt Check Weigher

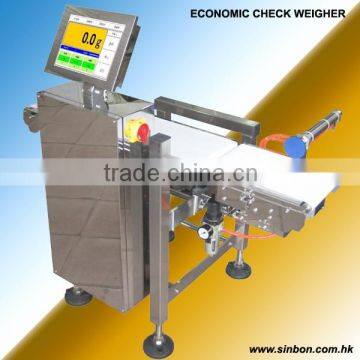

Conveyor Belt Check Weigher
- SHANGHAI CHINA
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | SINBON | |
| Model Number | CW-03N | Type | Conveyor Scale | |
| Power Supply | AC220V | Display Type | COLOR TOUCH SCREEN | |
| Rated Load | 300g | Accuracy | 0.1 |
Product Description
FEATURES
7" Color LCD touch screen display and easy to operate
High accuracy Load Cell to insure accuracy
20 Product preset and easy to edit and recall
Password Protect all the data
Quick-locking and fixing make conveyor is easy to be assembled, checked and cleaned.
English/Chinese Language operation system
Protect Class IP50
Stainless steel structure
APPLICATION
Widely used in food, pharmaceutical and consumable products industries for online weight check and quality control.
Used to in-motion weight check for all packed products
SPECIFICATION
Model No.: CW-03N
Weighing Range:50g-300g
Speed: Max. 120pcs/min.
Accuracy: ±0.5g (Detection Speed and Accuracy depend on product's weight, size and convey mode, working environment etc.)
Belt Width: 150mm
Infeed Conveyor Length: 350mm
Weighing Table Conveyor Length: 350mm
Rejector Conveyor Length: 350mm
Conveyor Height: 750±50mm
Reject System: Airjet
Working Conditions: Temperature 0℃-40℃
Air Source: 0.4-0.8Mpa; 4L/min.
Power Source: AC220V±10%; 50Hz; 1P
