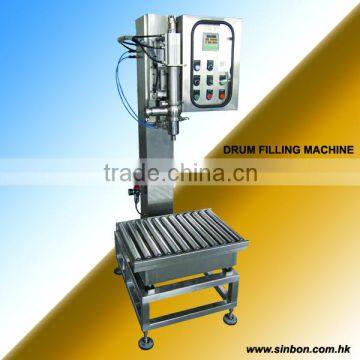

Semiautomatic 30kg Drum Filling Machine

1.Specification of Machine

l   Model No.: ADF-30L1

l   Filling Material: Liquid Bio Fertilizer

l   Filling Weight: 5-25kg/Barrel

l   Filling Capacity: 5L/20L Round Barrel  & Square Barrel

l   Filling Accuracy: +/-0.2% F.S. (Accuracy depends on suitable adjustment of slow feeding and the stability and consecutiveness of liquid to spray gun

l   Filling Speed: 3-5Barrels/min. (Depend on previous speed of feeding material, the previous speed of liquid must bt 150L/MIN.)

l   Measure Method: Double Feed Control

l   Barrel Size: Plastic Barrel, Small Open Mouth

l   Material Connector: DN40 Rapid Flange Connector (Pressure of liquid feeding should less than 0.6MPa)

l   Machine Color: Stainless Steel

2. Machine Details

2.1   Electric Weighing Scale with Roller Conveyor

l   Weighing Range: 30kg x5g

l   Weighing Table Size: 400mm X500mm

l   Stainless Steel Platform

l   Roller Conveyor with no motor driven

l   Weighing Area Size:400mm(L)x500mm(W)

l   Material of Machine Body: Stainless Steel 304

l   Material of Rollers: stainless steel pipe

l   Size: Φ40mm x75mm Pitch

l   Conveyor has detent mechanism and switch for moving/ Stop control

2.2   Automatic Liquid Filling Machine

l   Φ1” FA type Two Stages pneumatic Filling Spray Gun (Material of Spray Gun is SUS 304, Sealing Material: polyvinyl fluoride), Attached Φ1 1/2” rapid connector for feeding material, which used for change material, fast disassemble.

l   Manual adjust spray gun height

l   Equipped with automatic promotion and demotion cylinders

l   Equipped with base of filling spray gun (Material: Stainless Steel 304)

l   Included Anti-explosion pneumatic parts (pneumatic parts brand is AIRTAC)

2.3   Automatic Controller

l   Wall-hung type Control Box

l   ST510 Weighing Controller

l   FATEK FBS PLC programming control

l   10 Product Preset, easy to edit

l   Automatic Stop and Alarm when no liquid

2.4   Roller Conveyor for finished barrels storing

l   Roller Conveyor without motor driven

l   Roller Size: 1200mm(L)x400mm(W)

l   Material of Machine Body: Stainless Steel 304

l   Roller Material: stainless steel pipe

l   Size: Φ40mm x 75mm Pitch

l   Machine design is based on easy assemble and disassemble, convenient for changing rollers

l   Installed final baffle on roller conveyor to avoid barrel fall down
