milling machine

Specifications

Zhejiang Zhaoshan Machine Tool Co.,Ltd, which belongs to the China Zhaoshan Group, is located in Zhuji City, Zhejiang Province, China. We are manufacturer of good quality milling machines and lathe machines. Since it founded. We can produce all types milling machines and lathe machines according to your requirements.

At the same time, we have developed the formalization, intensified company’s direction. We established Hubei Zhaoshan Machinery Co.,Ltd and Hubei Xiangfan Machine Tool Co.,Ltd, which are located in Hubei Province as our son companies.

TF-4S specifications:

spindle taper: R8/NT-30(Φ86mm)

number of spindle speeds: 16

range of spindle speeds: 80-4530RPM

downfeeds of spindle: 0.04-0.08-0.16mm/r

number of downfeed: 3

spindle travel: 127mm

head movement( left and right): 90°

head movement( front and back): 45°

max travel from spindle to worktable: 420mm

collet capacity: 3-22mm

size of worktable: 254*1270mm

longitudinal travel of worktable: 900mm

lateral travel of worktable: 380mm

T-slot number (size): 3 (16mm)

max weight of workpiece: 320kg

max travel of knee: 420mm

overarm travel: 380mm

X,Y,Z guilding tracks: swallow tail, square, swallow tail

overall dinension: 2430/1740/2100mm

motor power: 2.2kw

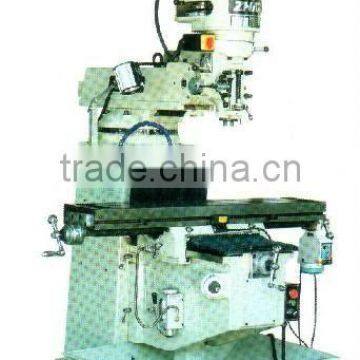

TF-4S:

TF-4SS:

our products:

our work shop:

Zhaoshan Group:
