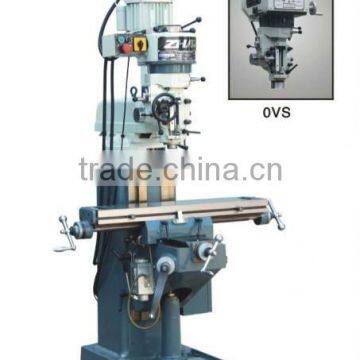

TF0VS milling machine
- NINGBO/SHANGHAI
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | ZHAO | Model Number | TF0VS | |
| Type | Vertical | CNC or Not | Normal |
Product Description
Specifications
we have won ISO9001, ISO14001 and CE, what is more, we were awarded as The High and New Technology Company of Zhejiang.Zhejiang Zhaoshan Machine Tool Co., Ltd, which belongs to the China Zhaoshan Group, is located in Zhuji City, Zhejiang Province. We are manufacturer of good quality milling machines and lathe machines, and can produce all type machines according to your requirements.
At the same time, we have developed the formalization, intensified company’s direction. We established Hubei Zhaoshan Machinery Co., Ltd and Hubei Xiangfan Machine Tool Co., Ltd which are located in Hubei Province as our son company.
TF-0VS specifications:
Spindle taper: R8/NT-30(Φ86mm)
Number of spindle speeds: no pole shift
Range of spindle speeds: 60-4200RPM
Down feed of spindle: 0.04-0.08-0.16mm/r
Number of down feed: 3
Spindle travel: 127mm
Head movement (left and right): 90°
Head movement (front and back): 0°
Max travel from spindle to worktable: 350mm
Collet capacity: 3-22mm
Size of worktable: 200*910mm
Longitudinal travel of worktable: 600mm
Lateral travel of worktable: 240mm
T-slot number (size): 3 (16mm)
Max weight of work piece: 160kg
Max travel of knee: 350mm
Over arm travel: 300mm
X, Y, Z guiding tracks: swallow tail, swallow tail, swallow tail
Overall dimension: 1663/1660/2032mm
Motor power: 2.2kw
