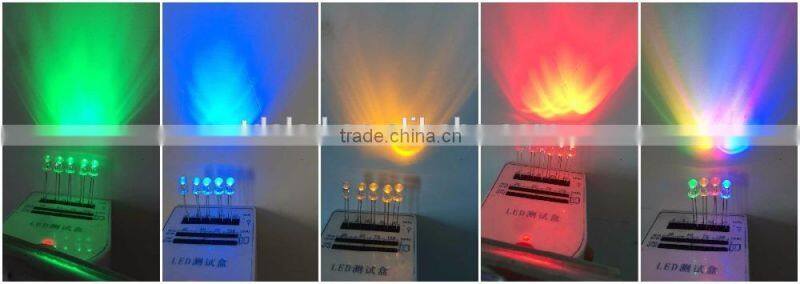

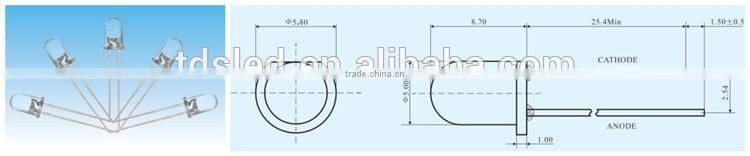

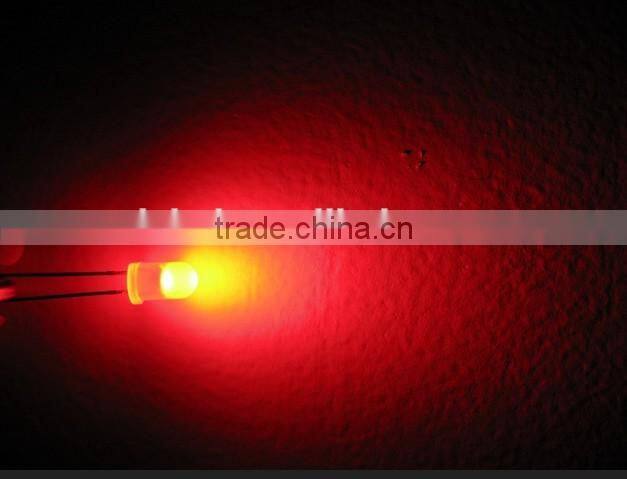

Through Hole 5mm Round Led Diode Chip
- SHANGHAI
- Credit Card PayPal
You May Like
-
Max Bright 8-9lm 6500-7000K 4.8mm Strawhat LED 0.06W 3500-4000MCD
-
70 / 60 Degree Diffused 5mm Oval Led With Stopper 1500-2000mcd
-
Diffused Color 5mm Yellow Oval Led Diode Without Stopper
-
Through Hole 5mm Concave LED Diode for Led Strips
-
5mm Yellow Oval Led Lamp With Stopper
-
Through Hole 5mm Concave LED Diode 7lm - 8lm
Product Details
| Model Number | TDS-5011 Series | Chip Material | InGaN | |
| Emitting Color | Red | Luminous Intensity | 8000-12000MCD | |
| Luminous Flux(lm) | 12-15lm | Optical Attenuation(%) | 0.0005 | |
| Power | Other, 0.06W, 0.06W | Power Dissipation | 0.001 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 620-625-630nm | |
| Operating Temperature(℃) | -20, 80 | Storage Temperature(℃) | -30, 70 | |
| Place of Origin | Jiangsu, China | Brand Name | TDS | |
| Certification | CE |
Product Description
| Part Number | Chip Material | Emitted Color | λD(nm) CCT Typ. | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | ||||||
| TDS-5011JR3CN | AlGaInP | Red | 625-630 | 6000 | 8000 | 1.9 | 2.3 | 15 | |
| TDS-5011KR3CN | AlGaInP | Red | 625-630 | 8000 | 12000 | 1.9 | 2.3 | 15 | |
| TDS-5011LR3CN | AlGaInP | Red | 625-630 | 12000 | 18000 | 1.9 | 2.3 | 15 | |
| TDS-5011GR2CN | AlGaInP | Red | 625-630 | 5000 | 6000 | 1.9 | 2.3 | 45 | |
| TDS-5011GR3CN | AlGaInP | Red | 625-630 | 3000 | 4000 | 1.9 | 2.3 | 60 | |
| TDS-5011GY2CN | AlGaInP | Yellow | 585-590 | 4000 | 6000 | 1.9 | 2.3 | 15 | |
| TDS-5011JY2CN | AlGaInP | Yellow | 592 | 6000 | 8000 | 1.9 | 2.3 | 15 | |
| TDS-5011KY2CN | AlGaInP | Yellow | 592 | 8000 | 12000 | 1.9 | 2.3 | 15 | |
| TDS-5011LY4CN | AlGaInP | Yellow | 592 | 5000 | 6000 | 1.9 | 2.3 | 45 | |
| TDS-5011LY2CN | AlGaInP | Yellow | 592 | 3000 | 4000 | 1.9 | 2.3 | 60 | |
| TDS-5011AM2CN | AlGaInP | Amber | 592 | 8000 | 12000 | 1.9 | 2.3 | 15 | |
| TDS-5011AM2CN | AlGaInP | Amber | 592 | 5000 | 6000 | 1.9 | 2.3 | 60 | |
| TDS-5011EB4CN | InGaN | Blue | 465 | 3000 | 4000 | 3.0 | 3.4 | 15 | |
| TDS-5011GB4CN | InGaN | Blue | 465 | 8000 | 9000 | 3.0 | 3.4 | 15 | |
| TDS-5011GB6CN | InGaN | Blue | 465 | 7000 | 8000 | 3.0 | 3.4 | 45 | |
| TDS-5011GB6CN | InGaN | Blue | 465 | 4000 | 6000 | 3.0 | 3.4 | 60 | |
| TDS-5011TDS4CN | InGaN | Green | 515 | 14000 | 18000 | 3.0 | 3.4 | 15 | |
| TDS-5011QG4CN | InGaN | Green | 515 | 16000 | 18000 | 3.0 | 3.4 | 45 | |
| TDS-5011QG5CN | InGaN | Green | 515 | 14000 | 16000 | 3.0 | 3.4 | 60 | |
| TDS-5011MW4CN | InGaN | Warm White | 2900K | 12000 | 14000 | 3.0 | 3.4 | 15 | |
| TDS-5011OW4CN | InGaN | Warm White | 2900K | 15000 | 18000 | 3.0 | 3.4 | 15 | |
| TDS-5011PW4CN | InGaN | Warm White | 2900K | 16000 | 20000 | 3.0 | 3.4 | 15 | |
| TDS-5011PW7CN | InGaN | Warm White | 2900K | 6000 | 7000 | 3.0 | 3.4 | 45 | |
| TDS-5011MW2CN | InGaN | White | 6500K | 12000 | 14000 | 3.0 | 3.4 | 15 | |
| TDS-5011PW2CN | InGaN | White | 6500K | 18000 | 22000 | 3.0 | 3.4 | 15 | |
| TDS-5011PW8CN | InGaN | White | 6500K | 30000 | 35000 | 3.0 | 3.4 | 15 | |
| TDS-5011TW2CN | InGaN | White | 6500K | 7000 | 8000 | 3.0 | 3.4 | 30 | |
| TDS-5011OW2CN | InGaN | White | 6500K | 4000 | 5000 | 3.0 | 3.4 | 60 | |
| TDS-5011PW2CN | InGaN | White | 6500K | 5000 | 6000 | 3.0 | 3.4 | 45 | |
Plesae contact our salesman for the updated Pirce and Stocks. If we do not have stocks, MOQ will be 10K Pcs.
1. Prices conditions
Price can be FOB, CIF ,EXW, or With taxes.
2. What will be the delivery time ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
3. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.
4. Could you please send me the sample ? Then i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
5. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
6. How will invoice be generated ?
Invoice can be generated with formal contract with company seals
7.payment:
T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque
If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
