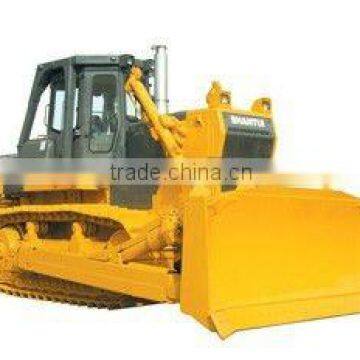

HT160 Bulldozer

Type of blade

Tilting straight blade

Operating weight

16100 (kg)

Max. drawbar pull

145(kN)

Ground pressure

55 kpa)

Width of standard shoe

1880(mm)

Ground clearance

445 (mm)

Grade ability

Straight 30°  Side 25^o

Capacity of blade

4.5  m³

Dimension of blade

3297×1170  (mm)

Digging depth

592(mm)

Overall dimension

5037×3270×3077 mm

ENGINE

C6121ZG05 CAT licence

TYPE: Swing type of sprayed beam. suspended

Type: Water-cooled, single-row, vertical,4-stroke-cycle, turbocharged.

Structure of equalizer bar

manufacture

Shang hai diesel engine company

Number of track rollers(each side)        7

Rated RPM

1900r/min

Number of carrier rollers(each side)       2

Rated power

131kW

Pitch                            203 mm

Num. of cylinder-bore×stroke

6-121mm×152mm

Width of shoe                     560 mm

Fuel consumption

215g/kw.h

Gear         Forward             Reverse

Max. torque

770N.m/1400rpm

1 st          4 km/h              4.8 km/h

2 st        6.9km/h             8.4 km/h

Max. system pressure               15.5MPa

3 st       10.9km/h            12.9 km/h

Pump type          Gear pump

System output              178L/min

POWER TRAIN

Torque converter

Single-stage with output torque divider combined smoothness with economy

Transmission

Planetary, power shift transmission with three forward and three reverse

Steering clutch

Multiple-disc oil power metallurgy disc compressed by spring hydraulic separate.

Steering brake

Hand levers combine steering clutch disengagement and braking in one control

Final drive

The final drive are double reduction with spur gear and segment sprocket

SD6G bulldozer is designed on the basis of CATs D6G, and the main component of undercarriage is interchangeable with D6Gs,

which is similar with D6D.We have accumulated twenty years experiences for manufacturing D6D, so the SD6Gs undercarriage

is reliable. The control valve for implement system is imported from PIRKER, a American company , which manufacture  valve

for CAT, so the implement hydraulic also enjoys a high quality.
