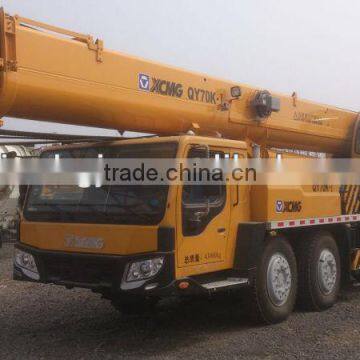

70ton hydraulic truck crane QY70K XCMG brand

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Any port in China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	QY70K truck crane
Rated Loading Capacity	70t	Rated Lifting Moment	QY70K truck crane
Max. Lifting Load	700000kg	Max. Lifting Height	58m
Span	QY70K truck crane	Place of Origin	Jiangsu, China
Brand Name	XCMG	Model Number	QY70K truck crane
After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

QY70K
Full-extend boom lifting height: 58m
Dimension:13500x2800x3510mm
Engine:Hangzhou steyr WD615.46
Good quality

70ton hydraulic truck crane QY70K-1 XCMG brand

Our main products areas are XCMG Truck Mounted Crane and All Terrneain Crane, including QY8D QY12 QY16C QY16D QY20B QY25K QY25K5 QY30K5 QY40K QY50B QY50K QY60K QY70K QY80K QY100K QY130K, QAY25 QAY130 QAY160 QAY200 QAY240 QAY300

•The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
•The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
•Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
•The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
•Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
•The humanity design makes the cab and control cab more spacious, and easy to operate.
•Six unique manufacturing technologies ensure the high quality.
•The working condition expands twice. Newly add 5t counterweight.

Detailed Specifications as follows:

Dimension	Unit	QY70K-I
Overall length	mm	13930
Overall width	mm	2800
Overall height	mm	3575
Weight
Total weight in travel	kg	43000(without 1t vice counterweight)
Front axle load	kg	17000
Rear axle load	kg	26000
Power
Engine model		WD615.338(domestic III)
Engine rated power	kW/(r/min)	276/2200
Engine rated torque	N.m/(r/min)	1500/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	327
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	70
Min. rated working radius	m	3000
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2303
Base boom	m	11.6
Fully extended boom	m	44.5
Fully extended boom+ jib	m	59.5
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.3
Working speed
Boom luffing time	s	60
Boom full extension time	s	≤150
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥130
Max. speed of aux. winch (single rope) (no load)	m/min	≥108

As a leading supplier in China,we can assure you best quality with most competitive price.

Also,we can supply you original factory products and welcome customers home and abroad.

Detailed contact information as follows:

We can also help you in Hydraulic system Design .
