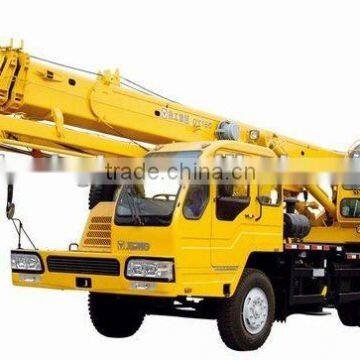

QY16C 16ton hydraulic mini truck crane XCMG brand
- Any port in China
- T/T
You May Like
Product Details
| Condition | New | Application | 1-16t | |
| Rated Loading Capacity | 16t | Rated Lifting Moment | 711kN.m | |
| Max. Lifting Load | 16t | Max. Lifting Height | 30.8m | |
| Span | 4.6/5.4m | Place of Origin | China | |
| Brand Name | XCMG | Model Number | QY16C |
Product Description
Specifications
1.16ton hydraulic Truck crane2. Engine SC8DK230Q3(EuroIII)
3.Dead weight in travel state 22900kg
4.Max.total rated liftin
QY16C 16ton hydraulic mini truck crane XCMG brand
Specification:
Dimension | Unit | QY16 |
Overall length | mm | 12110 |
Overall width | mm | 2500 |
Overall height | mm | 3250 |
Weight | ||
Total weight in travel | kg | 24000 |
Front axle load | kg | 6400 |
Rear axle load | kg | 17600 |
Power | ||
Engine model | WD415.21 | |
Engine rated power | kW/(r/min) | 155/2200,170/2200 |
Engine rated torque | N.m/(r/min) | 820/1400 |
Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | mm | 20000 |
Min. ground clearance | mm | 270 |
Approach angle | ° | 21 |
Departure angle | ° | 10 |
Max. grade ability | % | 24 |
Fuel consumption for 100km | L | ≤35 |
Main performance | ||
Max. rated total lifting capacity | t | 16 |
Min. rated working radius | m | 3 |
Turning radius at turntable tail | m | 3.14 |
Max. lifting torque | KN.m | 720 |
Base boom | m | 9.9 |
Fully extended boom | m | 31.1 |
Fully extended boom+jib | m | 39.4 |
Longitudinal outrigger span | m | 4.6 |
Lateral outrigger span | m | 5.4 |
Working speed | ||
Boom luffing time | s | 60 |
Boom full extension time | s | 95 |
Max. swing speed | r/min | 2.5 |
Main winch full load/no load (single rope) | m/min | 54/100 |
Aux. winch full load/no load (single rope) | m/min | 54/100 |
