Vacuum Ink Filling Machine-----auto Vacuum Ink Filling Machine

vacuum ink filling machine-----auto vacuum ink filling machine

1. Summarize

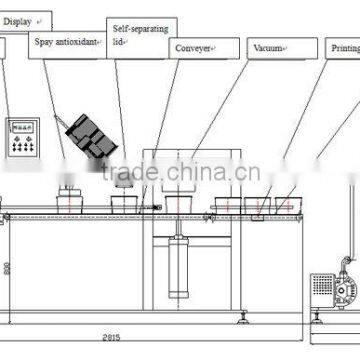

1.2  put 50 cans and 50 lids on the shelf then join the pipeline to the filling gun then start the machine will be operated follow :
1.2.1  self-separating the can and move to the electronic balance.
1.2.2  open the valve and the filling to be stopped when reaching the number then move to the platform for spraying .
1.2.3open the valve to spray well-proportioned fog on the surface and again move to the lid platform
1.2.4 the lid will be self-putting and move to vacuum area.
1.2.5 the can will be carried to the vacuum room when reach the numerical value   (usually -90 Kpa) and nitrogen  (usually -30 Kpa) and then sealing (usually 1 secs.) all the numerical value should set in advance.   Then open both  drain tap and vacuum room to move to the printing area .
1.2.6 printing the can on the bottom then convey for box up.(we will  buy the cartoner specialy)
1.2.7  when to pack other size container it should adjust some position and change both separation equipment for can and lid as well as bottom plate in vacuum room.
1.2.8 we will supply some filling gun and pipeline connection at customers request for quite more colors printing inks.
1.2.9  we also supply hopper where to connect the three roll machine and delivery pump pipeline as well as filling gun.

2.1 size of container
1: 1kg  Φ15cm×7cm
2: 2.5kg Φ18cm×8cm
3: we will meet the special request . biggest sizeΦ20cm×13cm

2.2  maximum weight         5kg
2.3  precision                       ±0.1%
2.4  biggest vacuum           95KPa
2.5  biggest vacuum after nitrogen                      40 KPa
2.6  printing                           8 sets
2.7 packaging speed         12 sets./2.5kg can
                                               10 sets./1kg can

2.8 air compression           0.6±0.05MPa
2.9 nitrogen                          purity 99.9%  pressure ≥0.3Mpa
