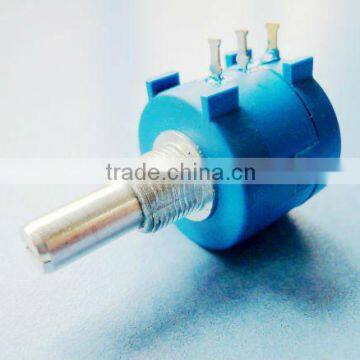

WXD 3590 ceramic potentiometer

FOB Price

USD $1 - $1.8 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.WXD 3590
2. Multiturn 3590 Trimmer Potentiometer
3. RUV certification
4. RoHS ISO compliant
5. Competitive price

◊ Details of Pictures:

◊ Mechanical Parameter:



Electrical Characteristics	Range of nominal resistance	100Ω~100KΩ
	Resistance tolerance
		±2%, ±5%

	Terminal resistance
		≤±0.2%R or 5Ω
	Peak Noise
		≤100Ω
	Insulation resistance	≥ 200MΩ (100V AC)

	Withstand voltage	500V (DC or AC peak value)

	Electrical angle	3600° ± 10 °

Environment Characteristics	Rated power	2W ( 300V 70 °C )
	Temperature range	-55°C~+125°C

	TCR	±100×10-6/°C

	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R

	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ

	Electrical endurance (2W, 1000h)	ΔR≤± 3%R

	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m


Physical Characteristics	Total mechanical travel	3600° ± 10 °
	Rotational torque	2-10mN.m
	Standard package	50 pcs /box
