Home > Products > 3540 wire-wound potentiometer > WXD3540 precision 10k ohm wire potentiometer

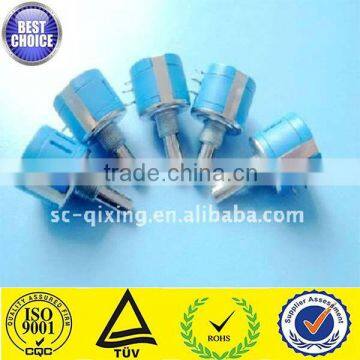

WXD3540 precision 10k ohm wire potentiometer
- 50000 Piece / Pieces per Month
- GUANGDONG
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | BONENS | |
| Model Number | WXD3540 | Type | Rotary Potentiometer | |
| Technology | Other, cermet | Resistance | 100~100KΩ | |
| Resistance Tolerance | ±2%, ±5% | Rated Power | 2W | |
| Max. Operating Voltage | 500V | Operating Temperature | -55°C~+125°C |
Product Description
Specifications
1.8 years producing experience2.ISO9001,TUV,ROHScertificate
3.wire potentiometer
4.OEM service
5.free sample
Some parts of our certificates
Advantage of choosing our products:
1.Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,
wirewound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise
filter.
2.The established maxim of our company is technical innovation, keeping improvement and meet customer demands.
3.Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price
is your final choice.
4.Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods
in the field of the military industry .
WXD3540 | ||||||
| Electrical Characteristics | Range of nominal resistance | 100~100KΩ | ||||
| Resistance tolerance | ±2%, ±5% | |||||
| Terminal resistance | ≤2%R or 5Ω | |||||
| Linear accuracy | ±1%, ±0.5% | |||||
| Electrical angle | 3600°±10° | |||||
| Insulation resistance | ≥ 200MΩ | |||||
| Withstand voltage | 500V (DC or AC peak value) | |||||
| Environment Characteristics | Rated power | 2W (70°C) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±100×10-6/°C | |||||
| Temperature shock | ΔR≤±3%R | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||
| Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability) | ΔR≤±3%R, Insulation Resistance≥100MΩ | |||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, Electrical break≤100μS | |||||
| Rotational life(10000cscles) | ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m | |||||
| Electrical endurance (70°C, 2W, 1000h) | ΔR≤±3%R | |||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m | |||||
| Physical Characteristics | Total mechanical travel | 3600°±10° | ||||
| Rotational torque | 2~10mN.m | |||||
| Stopper torque | ≥300mN.m | |||||
Website: http://sc-qixing.en.china.cn/
Tel. : 028-83588920/83588907
Fax :028-83588910
