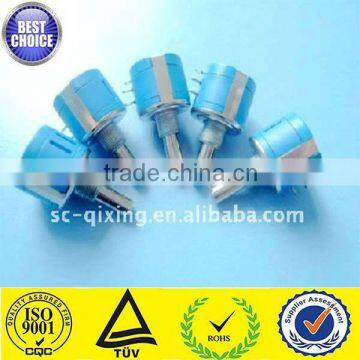

b2k rotary potentiometer wxd3540 potentiometer

FOB Price

USD $1 - $1.8 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. 100~100K
2. Precision Wire-wound Potentiometer
3.Fast delivery
petitive price 5,sample order welcome !

Electrical Characteristics	Range of nominal resistance	100~100KΩ
	Resistance tolerance	±2%, ±5%
	Terminal resistance	≤2%R or 5Ω
	Linear accuracy	±1%, ±0.5%
	Electrical angle	3600°±10°
	Insulation resistance	≥ 200MΩ
	Withstand voltage	500V (DC or AC peak value)

Environment Characteristics	Rated power	2W (70°C)
	Temperature range	-55°C~+125°C
	TCR	±100×10-6/°C
	Temperature shock	ΔR≤±3%R
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability)	ΔR≤±3%R, Insulation Resistance≥100MΩ
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, Electrical break≤100μS
	Rotational life(10000cscles)	ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m
	Electrical endurance (70°C, 2W, 1000h)	ΔR≤±3%R
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m

Physical Characteristics	Total mechanical travel	3600°±10°
	Rotational torque	2~10mN.m
	Stopper torque	≥300mN.m

Other Main Products:

Our Partners:

CHANGHONG

TAIWAN KEZHENGXIN ELECTRONICS CO.

XI’AN HONGXING ELECTRONICS CO.

JIALING MOTORCYCLE

KLS ELECTRONIC CO., LTD.

Some parts of our certificates

Workflow:

About Package:

25 pieces/plastic box

50 pieces/box

600 pieces/carton

The Weight:14.6kg

The Size of Carton:420mm*330mm*310mm
