Digital Differential Pressure Gauge
- Xi'an Airport
 - T/T L/C D/P D/A Credit Card

You May Like
Product Details
| Place of Origin | China | Brand Name | HT | |
| Model Number | BPZ2006 |
Product Description
KEY WORD: wireless digital pressure gauge
Description
BPZ2005 digital pressure gauge use HT series piezoresistive silicon pressure sensor
as signal measure element. It utilizes ASICdesign and stainless steel isolate diaphragm. It has high accuracy,good stablility, long life.
It use the large LCD digital display, 18mm(0.71") high ,eliminates the
guesswork that occurs when taking readings with an analog dial gauge. Zeroing the
display is done with the push of a button. The auto-off function will display the pressure readings for 1-15 minutes (optional) before the unit automatically shuts off, prolonging battery life.
Feature
Accuracy: 0.25%FS
Operating Temperature Range: 0 to 50°C
Battery: 9V alkaline(included)
Wetted Parts: 316L stainless steel
Media Compatibility: All corrosive media compatible with 316L SS
Application
Liquid, gases which compatible with 316LSS
Used to petroleum,,chemical industry, power plant, water supply of town, Hydrologic exploration fields.
Specification
Range  | BPZ2005:-0.1~0...~100MPa  |
  |
Proof pressure  | 1.5X rated pressure or 110Mpa,whichever is less  | Over static pressure≤5X rated pressure or 4MPa, Whichever is less  |
Accuracy  | ±0.25%(Typic) ±0.5%(Max.)  | |
Long stability  | ±0.2%F.S/year  | |
Operating Temperature  | -1°C~49°C  | |
Supply  | 9V  | |
Battery life  | 2 years in power-saving mode  | |
Housing dimension  | 67×116mm  | |
Housing material  | ABS,stainless steel 1Cr18Ni9Ti  | |
Diaphragm material  | 316L  | |
Pressure port  | 1/4~18NPT  | |

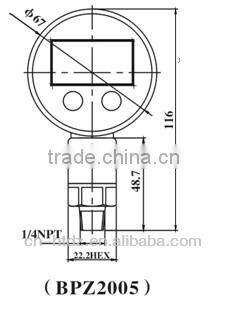

Dimension
Ordering information
BPZ200  | digital pressure gauge  | ||||
  | code  | Model  | |||
5  | Gauge pressure,Absolute pressure ,vacuum pressure  | ||||
  | Range  | -0.1~0...100MPa  | |||
(0-X)KPa or MPa  | X: Measure range  | ||||
  | code  | Pressure port  | |||
J1  | 1/4NPT  | ||||
J2  | G1/4 male  | ||||
J3  | Customize  | ||||



  | code  | Pressure type  | |||
G  | Gauge pressure  | ||||
A  | Absolute pressure  | ||||
