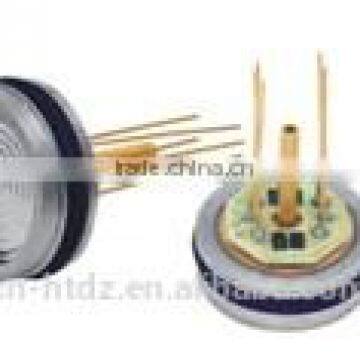

Pressure Sensor

FOB Price

US$ 1 - 30 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	HT
Model Number	HT26

Wide measurement range:0~10KPa~100Mpa
Full 316LSS, Titanium or Hastelloy diaphragm
Flush membrane configuratn

key word: water pressure sensor

Performance Specification

Parameters		Range:0~10KPa,35KPa,0~70KPa,100KPa,200KPa,350KPa,700KPa,1000KPa,2000KPa,3500 KPa,7MPa,10MPa ,20MPa,35Mpa,60MPa,100MPa
Parameters		Typical	Max.	Units
Pressure Non-linearity		±0.15 (0~2MPa) ±0.2 (3.5MPa~100MPa)	±0.3	%F.S
Pressure Repeatability and Hysteresis		0.02	0.05	%F.S
Zero Output		0±1	0±2	mV
Span Output	≤20KPa	50±10	50±30	mV
Span Output	≥35KPa	100±10	100±30	mV
Temperature Error-Zero	≤20KPa	±1	±2	%F.S
Temperature Error-Zero	≥35KPa	±0.5	±1	%F.S
Temperature Error-Span	≤20KPa	±1	±2	%F.S
Temperature Error-Span	≥35KPa	±0.5	±1	%F.S
Proof Pressure		3X Rated range or 120MPa,whichever is less		------
Operating Temperature Range		-20~80		°C
Compensated Temperature Range		0~70, 0~50(Range≤20KPa)		°C
Storage Temperature Range		-40~125		°C

Note :Above parameter under condition:Supply: 1.5mA Temperature:25°C
