Diffused Silicon Oil Filled Pressure Sensor
- XI'AN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | HT | |
| Model Number | HT1 series sensor |
Product Description
Description
HT19V isolated pressure sensor,utilizes the piezoresistance effect of diffused silicon to fulfill measuring &controlling pressure of liquids and gases with high accuracy and good stability.
Feature
Wide pressure range
Φ19 mm standard dimension
Multiple profile
High accuracy,good stability
Constant voltage supply
Low output drift
Application
Measurement pressure of gas and liquid
Petroleum exploitation
Water supply,warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure

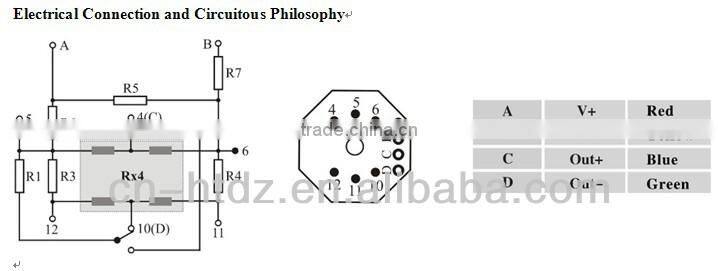

Electrical Data
Supply: 10VDC Input Impedance :6KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ Insulation Resistance:≥100MΩ/50VDC
Insulation Voltage:500VAC between the case and electrical connections will not cause damage
Medium Compatible: Liquids, gases which compatible with 316LS S

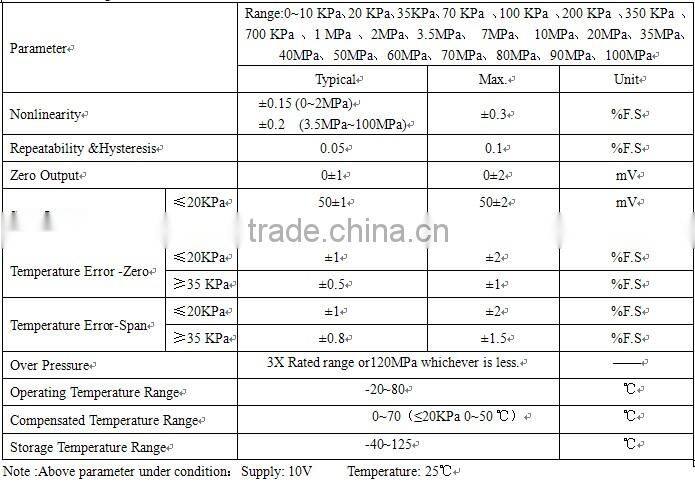

Performance Specification

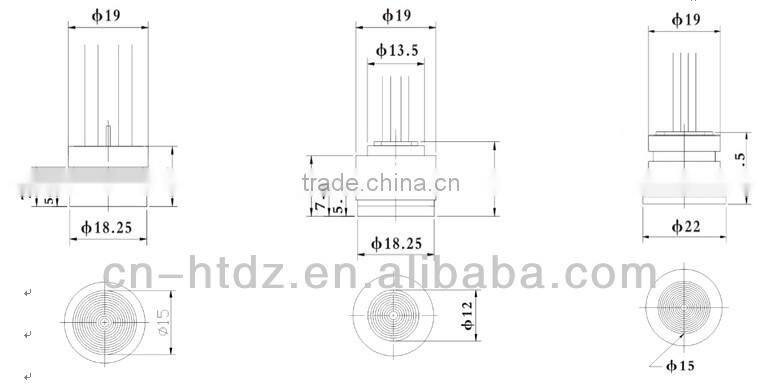

Dimension
Type I Type II (60MPa≤Range≤100 MPa) Type III
