Analog Pressure Controller
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | China | Model Number | BPZK02 |
Product Description
Specifications
1. 150mm profile2. High light LED display
3. Can provide Max. 4 way control contact point
4. Wide range
1. Description
BPZK02 digital pressure controller combine pressure measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output ,span output, pressure of contact point and control pressure with key at scene.
2. Feature
Wide range, Full stainless steel.
Various pressure point.
High light LED display.
Two supply power mode 24VDC or 220VAC.
Marking:ExiaIICT6.
Can provide Max. 4 way relay control contact point.
value of contact point and status of contact point can be set freely
3.Application
Compatible with 316LSS,noncorrosive liquids.
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
4.Specification
Measurement Range | -0.1...0~0.01...~100MPa |
Proof pressure | ≤1.5X rated pressure |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%(typical) ±0.5%(Max.) |
Long stability | ±0.3%F.S/year |
Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Operating Temperature Range | -20°C~80°C |
Storage Temperature Range | -40°C~120°C |
Power supply | 24VDC or 220VAC |
Output signal | Analog :4~20mA |
Pressure port | M20×1.5 G1/2 or customize |
Relay control | 1~4 way relay control AC220V/3A |
Life of contact point | More than 100000 times |
Display | -1999~9999 |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O ring | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ 100VDC |
Protection | IP65 |

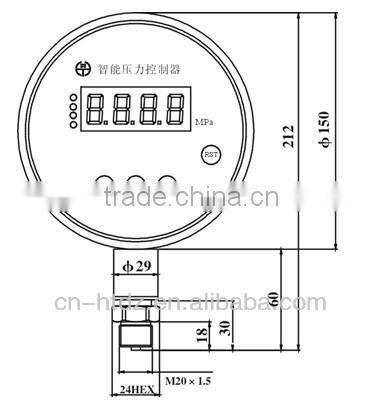

5.Dimension

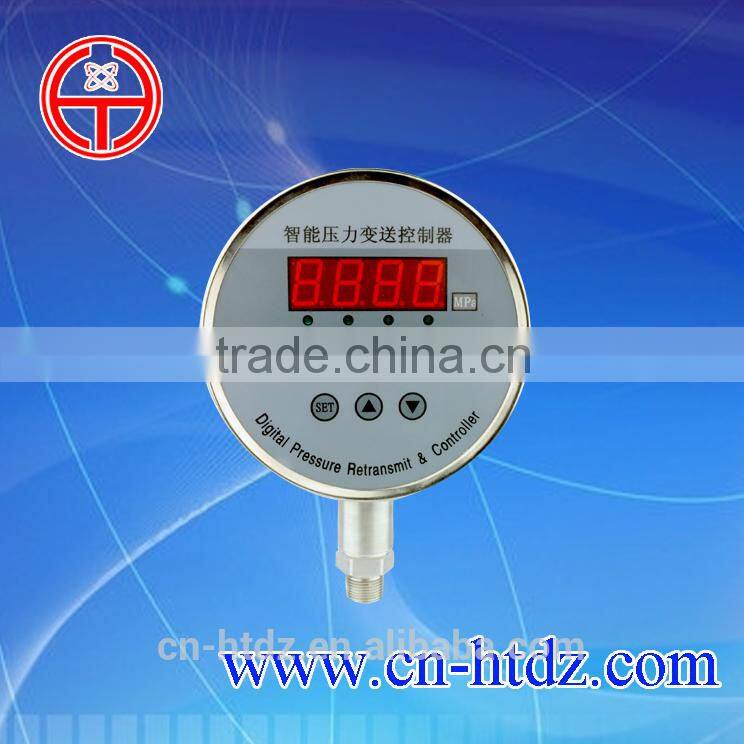

6. picture
