Pressure Transducer
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | Hengtong | |
| Model Number | BH9345 |
Product Description
Specifications
High reliability and stabilityStainless steel configuration
Description
BH9345 liquid level transducer is HT series of piezoresistive isolation diaphragm oil filled sensor as a signal measuring element seal in stainless steel in the shell structure, special cable and shell seal connection, cable has airway, make the sensor back pressure cavity and atmospheric interlinked, ensure that the measurement accuracy, and can long-term investment and transmitter structure compatible materials used in the liquid
Feature
Stainless steel configuration,
putting-in type liquid level meter
Current supply,voltage output signal
Application
Compatible with 316LSS,noncorrosive liquids
Apply in Petroleum industry, chemical industry,generating station,water supply,hydrology etc. those need to measure &control liquid’s level.
Specification
Pressure range | 0~1...~200m |
Proof pressure | <1.5X rated pressure |
Accuracy | ±0.1% (Min.) ±0.25%(Typic) ±0.5%(Max.) |
Power supply | Current :1.5mADC voltage:9VDC |
Zero output | <±2mVDC |
Span output | ≥70mVDC |
Long stability | ±0.3%F.S/year |
Compensate temperature range | 0°C~70°C |
Operate temperature range | -10°C~80°C |
Store temperature range | -40°C~120°C |
Temperature Error- Zero | ≤±0.02%F.S/°C |
Temperature Error -Span | ≤±0.02%F.S/°C |
Housing material | Stainless steel: 1Cr18Ni9Ti |
Diaphragm material | 316L |
O-ring material | Fluororubber |
Cable | polyethylene |

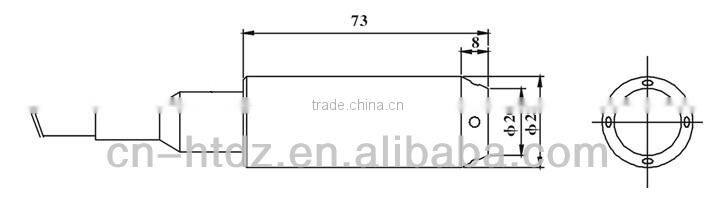

Dimension
Ordering Note:
1. Media must compatible with wetted parts.
2. There is two kinds of cable can be choose, one is common with gas tube, another is diesel oil &gasoline proof.
3. To ensure the products can working reliable,we suggest that customer install lightning protection device and make sure products & power are earthed.
4. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.
