Intelligent Control
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | China | Model Number | BPZK03 | |
| Application | Other | Rated Voltage | 24V |
Product Description
Specifications
1. 117mm profile2. High light LED display
3. Two supply power mode 24VDC or 220VAC,with RS485 communication interface
Description
BPZK03 digital pressure controller combine pressure measuring, display, control & transmit together, with RS485 communication interface. It can utilize RS485 bus to achieve network, digital signal transmitting and long-distance parameter setting & calibration. It can set the zero output ,span output, ,pressure of contact point and control pressure with key at scene.
Feature
Wide range, Full stainless steel.
Various pressure point.
117mm profile.
High light LED display.
Marking:ExiaIICT6.
Two supply power mode 24VDC or 220VAC,with RS485 communication interface.
Can provide Max. 4 way relay control contact point.
value of contact point and status of contact point can be set freely
Application
Compatible with 316LSS,noncorrosive liquids.
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
Specification
Measurement Range | -0.1...0~0.01...~100MPa |
Proof pressure | ≤1.5X rated pressure |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%(typical) ±0.5%(Max.) |
Long stability | ±0.3%F.S/year |
Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Operating Temperature Range | -20°C~80°C |
Storage Temperature Range | -40°C~120°C |
Power supply | 24VDC or 220VAC |
Output signal | Analog output :4~20mA;Digital output :RS485 |
Pressure port | M20×1.5 G1/2 or customize |
Relay control | 1~4 way relay control AC220V/3A |
Life of contact point | More than 100000 times |
Display | -1999~9999 |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O ring | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ 100VDC |
Protection | IP65 |

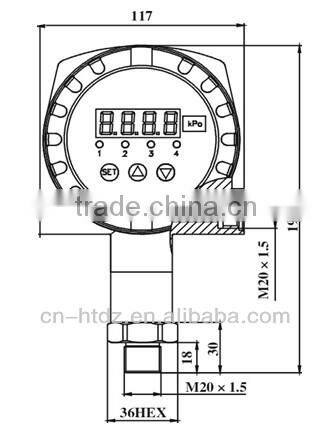

Dimension
