Medium Duty Long Span Storage Racking
US$ 1.2 - 1.6
/ Set
10 Sets(Min. Order)
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | HEGERLS | |
| Model Number | HGLS-BR--05 | Type | Other, Pallet Rack, Steel Plate Stacking Racks | |
| Scale | Heavy Duty | Capacity | MANY |
Product Description

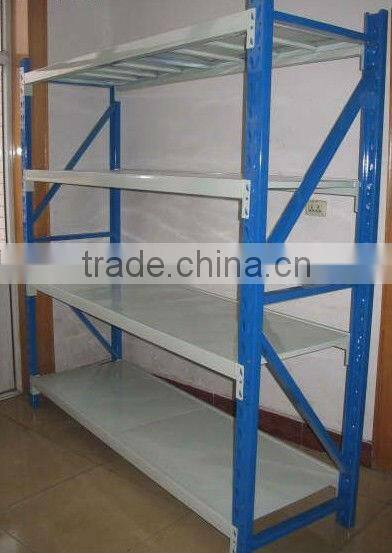

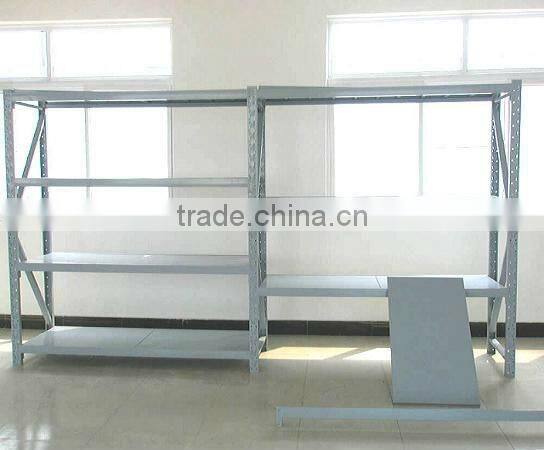

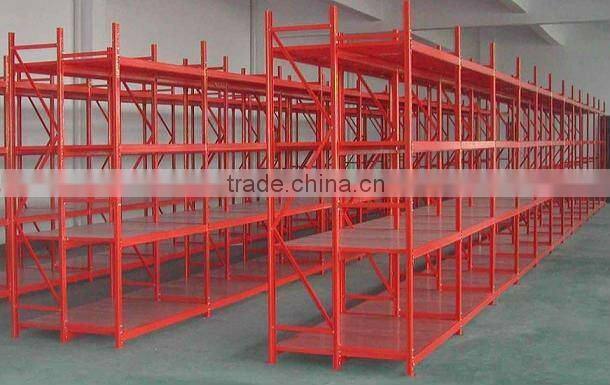

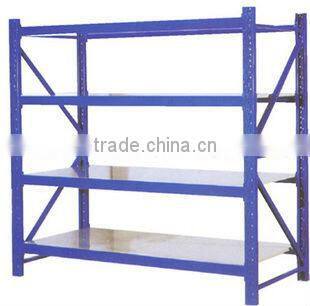

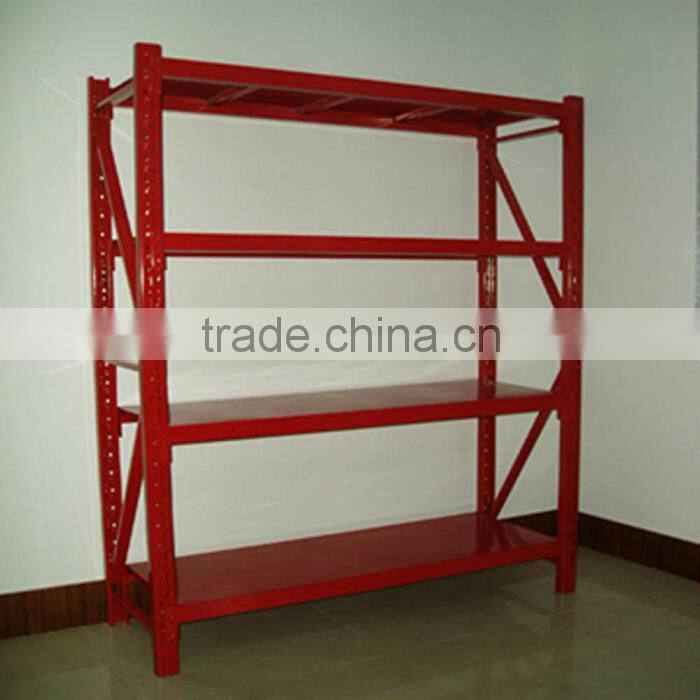

Medium Duty Storage Rack
This Medium Duty Storage Rack is perfect for handling light loads, with a load capacity of 200-800kg per level. It is durable and smart in appearance. Assembly is easy with boltless connection. The metal decking levels are adjustable at steps of 50mm.
Features:
- Material: stainless steel
- Shelving Structure: upright, metal deck, shelf clip, foot plate, main frame, sur-frame and other accessory
Deck Type: Multiple deck types are available.
- Height of Each Layer: it can be adjusted by pitch 50mm freely
- Levels: it is optional(1 to 4 layers)
- Max Load Capacity: 200 to 800 kg/layer;
- Size: different size available
- Surface Treatment: static powder coating
- Color: RAL color system
- Process: all the accessories of this Medium Duty Storage Rack are processed by polishing, acid cleaning, phosphating, automatic static sprayed, baking and so on.
- Installation &Disassembling:Modular design makes assembling and Disassembling easy
- Usage: this Medium Duty Storage Rack is often used in warehouse, grocers, book stores, library, garage and other public fields
Specification of this Medium Duty Storage Rack :
| Model | Specification (Main Frame) | Specification (Optional Frame) | No.of Levels | Load Capacity per Level |
| MS50-50-1250 | 1250Lx600Dx2000H | 1200Lx600Dx2000H | 4 | 350kg |
| MS50-50-2000 | 2000Lx600Dx2000H | 1950Lx600Dx2000H | 4 | 200kg |
| MS50-60-1250 | 1250Lx600Dx2000H | 1200Lx600Dx2000H | 4 | 500kg |
| MS50-60-2000 | 2000Lx600Dx2000H | 1950Lx600Dx2000H | 4 | 300kg |
| MS50-70-1250 | 1250Lx600Dx2000H | 1200Lx600Dx2000H | 4 | 650kg |
| MS50-70-2000 | 2000Lx600Dx2000H | 1950Lx600Dx2000H | 4 | 400kg |
| MS50-80-1250 | 1250Lx600Dx2000H | 1200Lx600Dx2000H | 4 | 800kg |
| MS50-80-2000 | 2000Lx600Dx2000H | 1950Lx600Dx2000H | 4 | 500kg |
