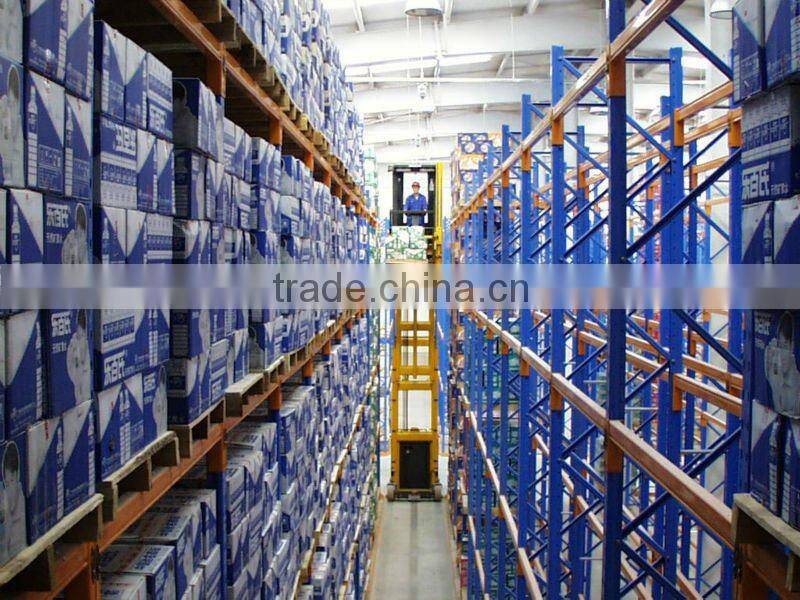

Warehouse Storage Pallet Rack

Pallet Storage Rack

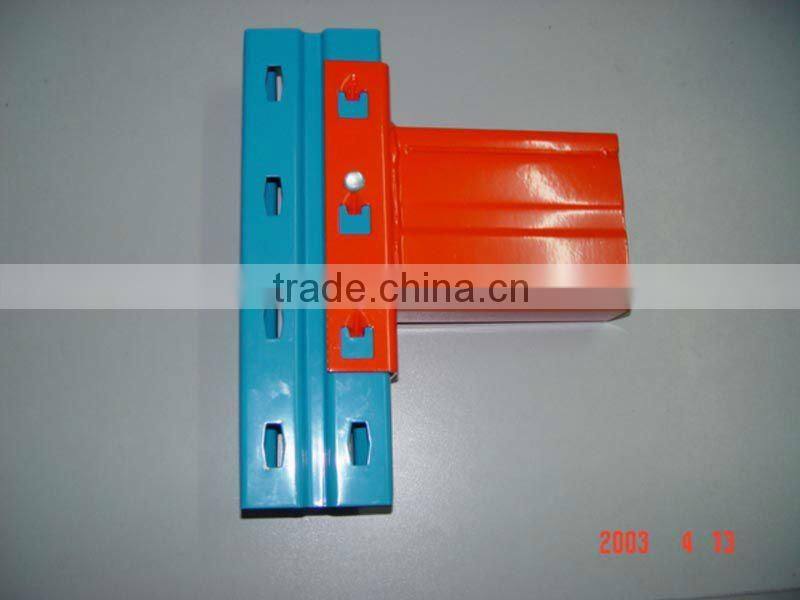

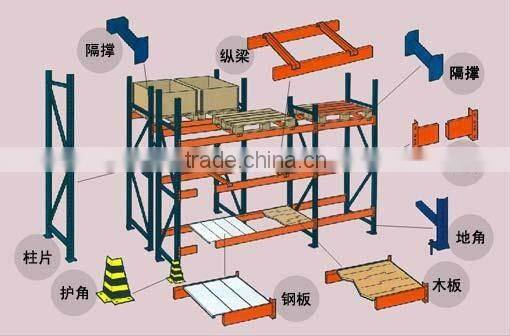

Heavy duty pallet racking system usually consist of upright frame, beam, pallet support bar and other standard components. H-bracing and D-bracing connect with upright by nylon self-lock bolts,can effectively prevent racking from losing balance cause by the release of the bolts; Drum-shaped holes are punched on the upright, so beam can be adjusted by 75 mm.

Standard pallet racking is by far the most versatile of any racking as it is available with many configurations, a wide range of accessories and requires no specialized handling equipment. Pallet racking is easily utilized with just standard fork- and hand-trucks. Pallet racking is an ideal starting point for all your warehouse and storage needs.

Adjustable pallet racking systems come in many different styles, but it is important to get the basics right. For safe and efficient operation, pallet racking systems must be designed to fit and function with both the handling equipment and the load. Pallet racking systems may have to work with counterbalance trucks, reach trucks, narrow aisle trucks or automated handling equipment.

Features:

1. pallet racking system, most frequently used in warehouse
2. made of cold rolled special shaped steel
3. size customized, loading: 500-4000kg/layer
4. ISO9001,TUV certification

5. color: blue, red, orange, green, yellow or others

6. surface treatment: powder coating

7. more than 10 year's export experience

8. widely used in manufacturing &  logistics & storage field etc

9. made according to customer's requirements

10. Design for free. We can survey your warehouse and provide CAD drawings on a customised solution to maximise the efficiency of your storage system or space.

The parts adopt high quality material, and could be soldered firmly, installed closely.

Perfect accessories system, could be used in various special demands.

The Load Table:
