Heavy Duty Warehouse Storage Pallet Beam Rack
- Xingang
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Hegerls | |
| Model Number | HGLS-YC-025 | Type | Plate Type | |
| Material | Other, Steel, Cold Rolling Steel Q235 | Feature | Corrosion Protection | |
| Use | Warehouse Rack | Certification | CE | |
| Depth | 1.8mm 2.0mm 2.5mm | Weight Capacity | 1000-3000kgs | |
| Width | 600-1100mm | Height | 2000-8000mm |
Product Description

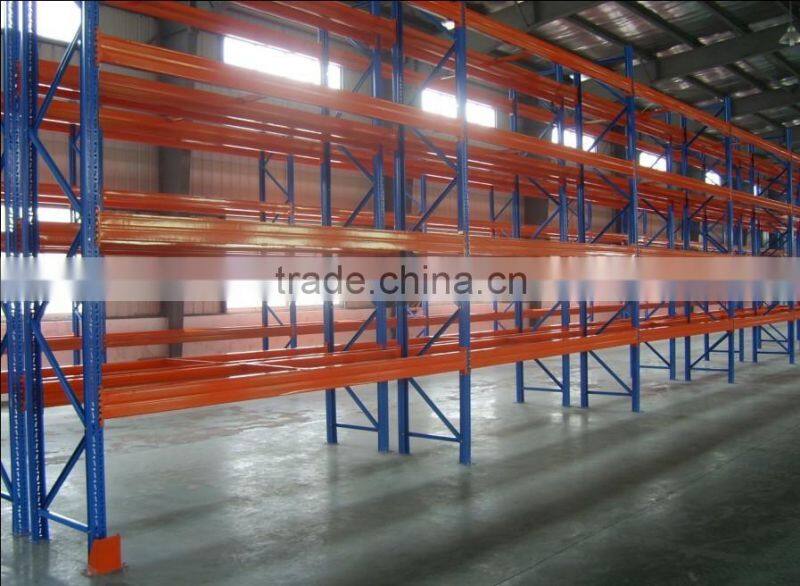

Pallet Storage Rack
Heavy duty pallet racking system usually consist of upright frame, beam, pallet support bar and other standard components. H-bracing and D-bracing connect with upright by nylon self-lock bolts,can effectively prevent racking from losing balance cause by the release of the bolts; Drum-shaped holes are punched on the upright, so beam can be adjusted by 75 mm.
Standard pallet racking is by far the most versatile of any racking as it is available with many configurations, a wide range of accessories and requires no specialized handling equipment. Pallet racking is easily utilized with just standard fork- and hand-trucks. Pallet racking is an ideal starting point for all your warehouse and storage needs.
Adjustable pallet racking systems come in many different styles, but it is important to get the basics right. For safe and efficient operation, pallet racking systems must be designed to fit and function with both the handling equipment and the load. Pallet racking systems may have to work with counterbalance trucks, reach trucks, narrow aisle trucks or automated handling equipment.
The parts adopt high quality material, and could be soldered firmly, installed closely.
Features:
1, Suitable for storing small variety but large quantity goods;
2, Highest space utilization for warehouse storage among standard racks;
3, Each aisle has several layers of pallet support rail which pallets can be stored on it well one by one;
4, Convenient for forklift operation along the aisle;
5, Top and back bracings are fixed to the rack that makes it more stable and safer;
6, First layer pallets can be stored on the floor;
7, Surface treatment: powder coating, galvanized;
8, Widely used in food industry, especially for cold store.
Perfect accessories system, could be used in various special demands.
The Load Table:
Length | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 |
Beam Specification | Load/kg | |||||||
80×50 | 3000 | 2300 | 1800 | 1500 | 1200 | 1000 | 800 | 700 |
100×50 | 4000 | 4000 | 3000 | 2400 | 2000 | 1750 | 1400 | 1100 |
120×50 | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 | 2000 | 1800 |
140×50 | 4000 | 4000 | 4000 | 4000 | 4000 | 3800 | 3000 | 2500 |

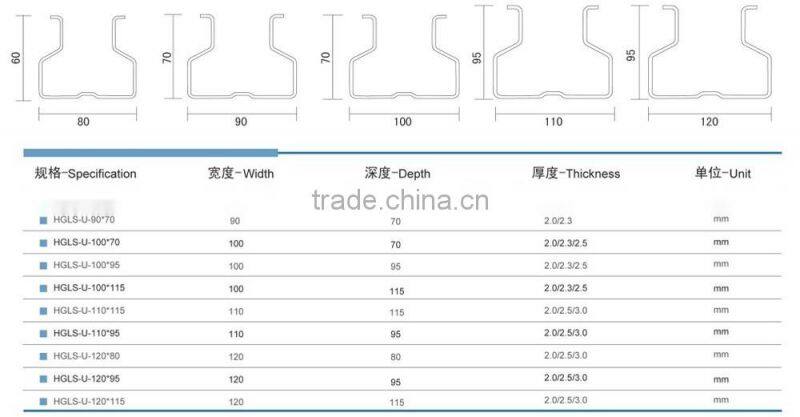

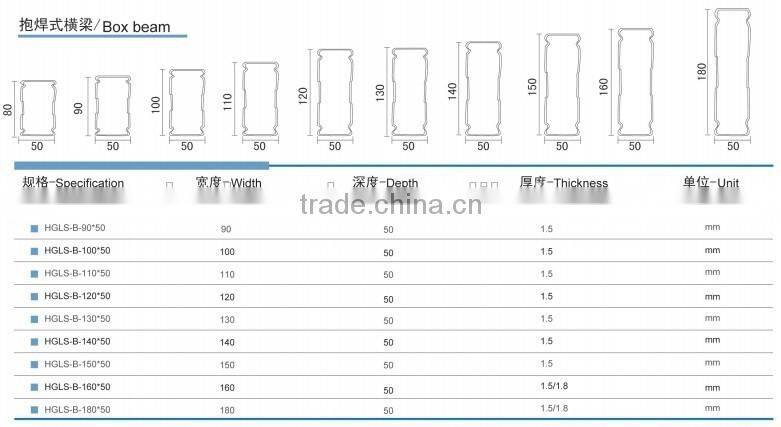

The pics of box beam ,step beam

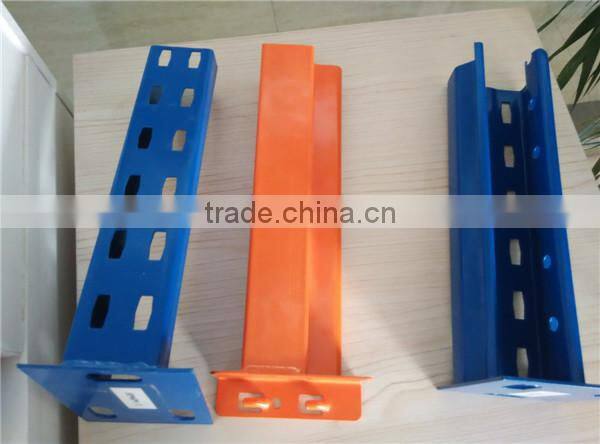

The material of warehouse racks

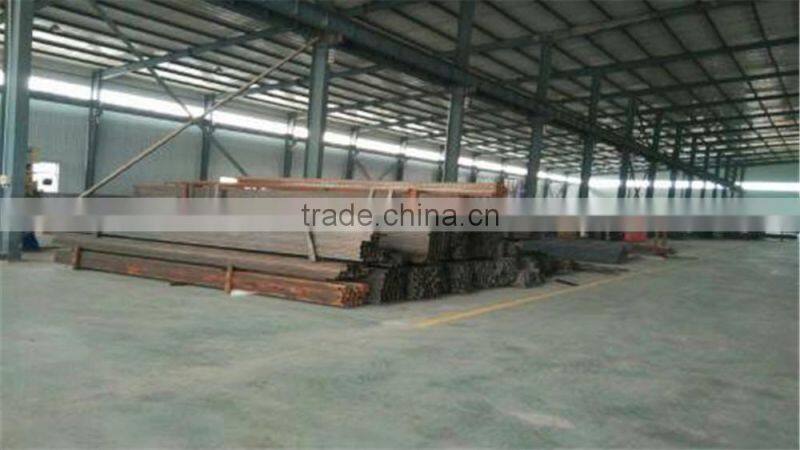

The overview of warehouse racks and shelves workshop

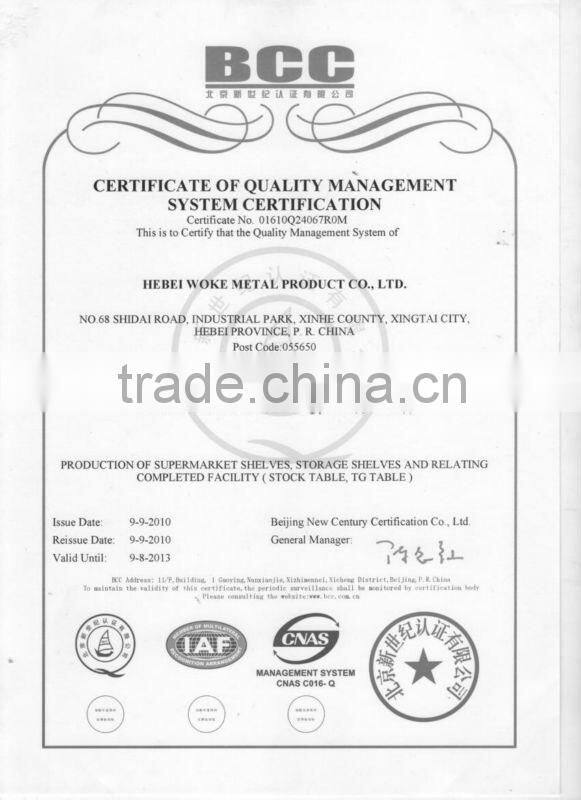

The certificate of hebei woke metal
Our team
Our service from hebei woke metal
Before Sale Services
Our before sale services include
- Specifying the site measurements
- Determining suitable solutions and systems for storing
- Designing an appropriate system which applies maximum storing ability
- Responding to any inquiries
After Sale Services
Installation
Our after sale services include:
- Supplying and installing the storage system products in a professional manner, within an agreed time frame
- Working efficiently and effectively to ensure customer satisfaction.
- Maintaining follow up after completion.
Shipping
Accurate collation, packing and dispatch of products and components in appropriate containers (for land or sea shipment), ensures that quality products arrive complete and ready for installation
