Heavy Duty Warehouse Rack Equipment

1. Features:

1)Beam levers are adjustable in 75mm pitch interval.

2)Different sizes, various specifications and colors are available according to  customers’ different needs.

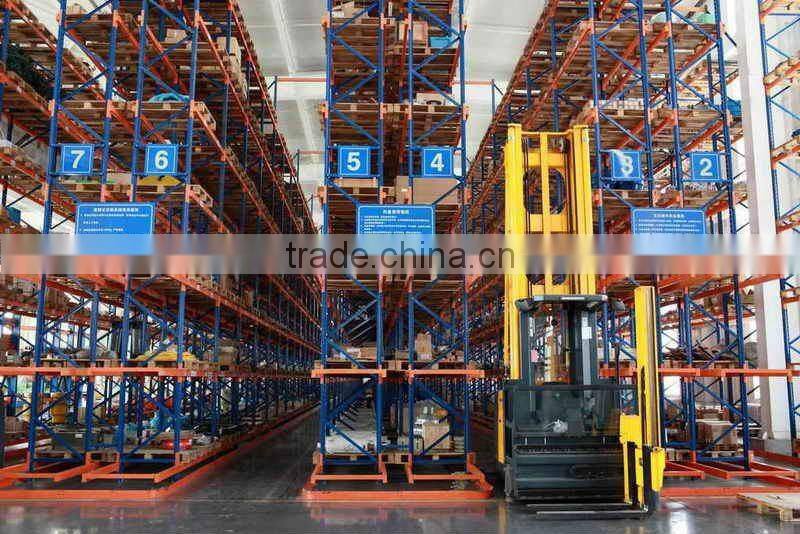

3)Maximizes space use ratio in any warehouse configuration while retaining optimum product accessibility.
4)Strength and rigidity prevents compression damage to goods.
5)Bottom level of pallets can be stored on the floor, lowering structure costs.

  2. Material:

 High grade Q235B Steel

  3. Finish:

 High-quality Powder Coating Finishing.

  4. Load Capacity & Dimension:

Loading capacity: 500-2500 kgs UDL/beam level.
Height: 1000-11000mm
Depth: 400-1500mm
Length: 1500-3600mm
Specail sizes also avaiable to specific storage needs.

  5. Main Parts Specs:

1) Uprights:86*66*1.5, 86*66*2.0,86*66*2.2, 100*80*2.0, 100*80*2.5, 120*80*2.0,120*80*2.5,140*80*2.0,140*80*2.5mm, etc.

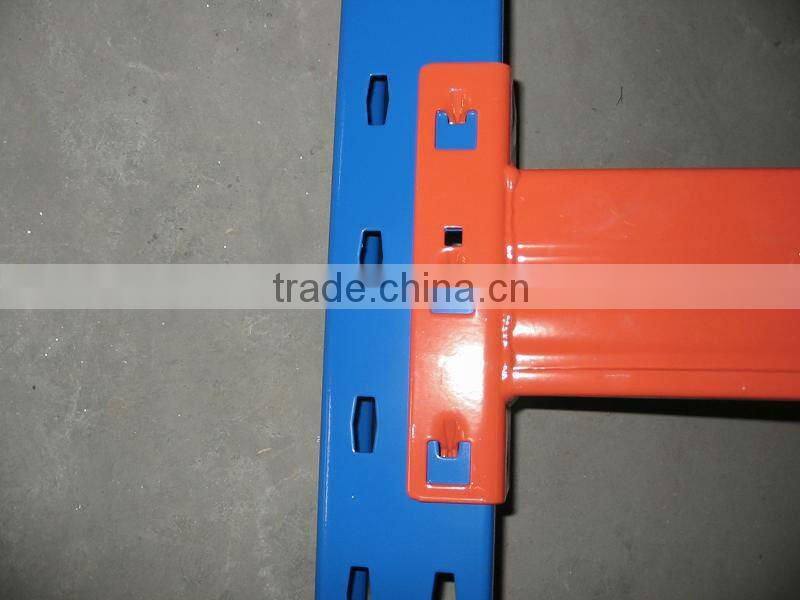

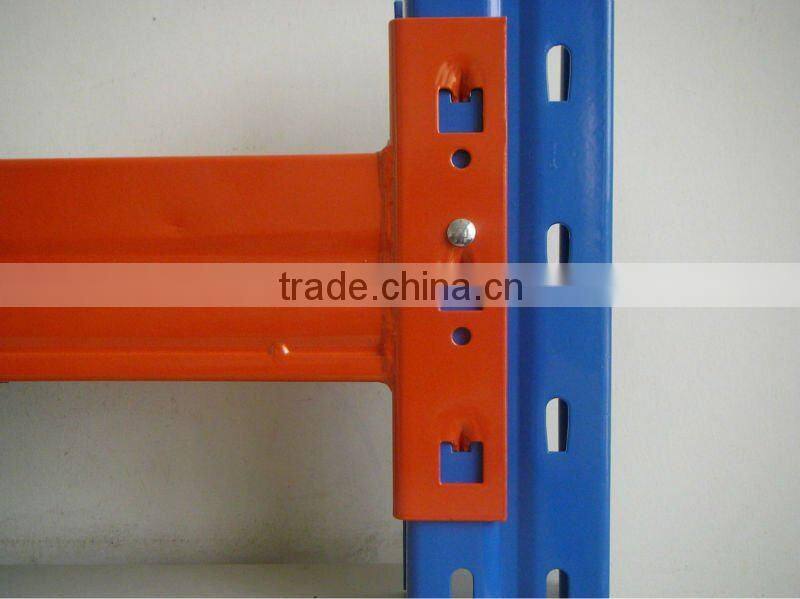

2) Box beams: 88*40*1.3, 88*40*1.5, 108*40*1.3, 108*40*1.5, 125*45*1.3,125*45*1.5, 125*45*2.0, 145*50*1.5, 145*50*1.8, 165*50*1.5mm, etc.,

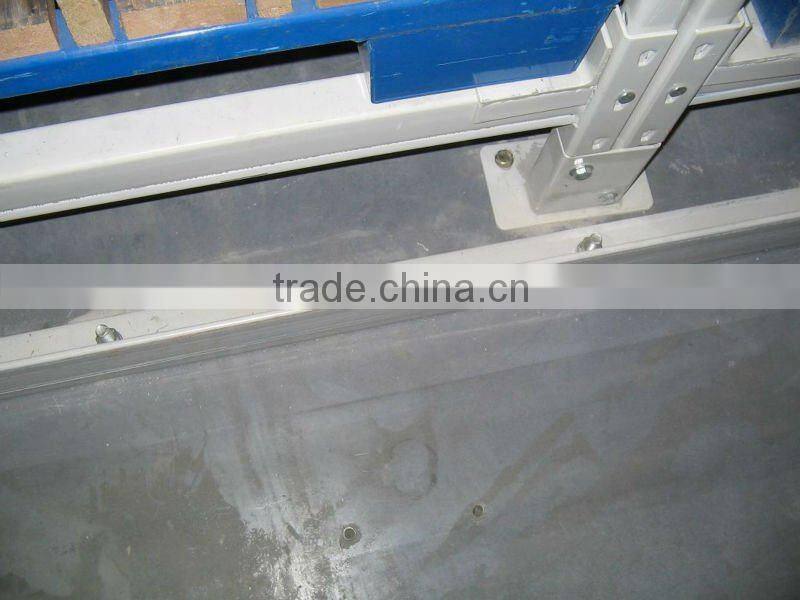

3) Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.

  6. CE certified.

Smaco® storage metal rack, CE certified, is designed and manufacturered to European Racking Code FEM 10.2.02, the Australian Standard - Steel Storage Racking AS4084-1993, and American racking standards.

  7. Quick Delivery.

 Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
