Special Recommend! High Efficient HF100YA2 Portable Rock Drilling Machine
- Qingdao port
You May Like
Product Details
| Condition | New | Type | Other, DTH drilling rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | HF | Model Number | HF100YA2 | |
| Usage | Ore | Power(W) | 33KW | |
| Dimension(L*W*H) | 4100*2030*2020mm | Weight | 3T | |
| Certification | ISO, CE | Warranty | one year for the main machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

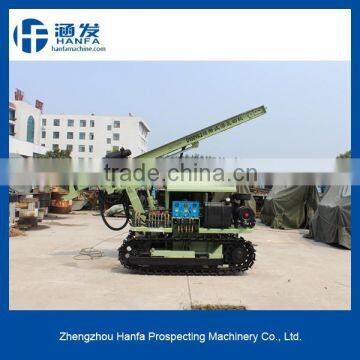

Special recommend! high efficient HF100YA2 portable rock drilling machine
Main features:
HF100YA2 crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole, the drilling rig structure compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation, drilling hole when the sliding frame support on the ground, drilling and good stability.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other rock drilling blasting holes.
Technical parameters:
Total Weight (kg) | 2800 |
Drilling diameter (mm) | 90~130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth (m) | 30 (max:40) |
Traveling speed (km/h) | 2 |
Once promotion distance (mm) | 2000 |
Grade ability (°) | 30 |
Working pressure (mpa) | 0.7~1.4 |
Chassis ground clearance (mm) | 260 |
Air consumption (m³/min) | 7~15 |
Skid pitch (°) | up and down total 100 |
Host Power (kw) | 33 |
Sliding tilt swing (°) | Left 35, right 10 |
For rock (f) | 6~20 |
Skid compensation (mm) | 900 |
Impact frequency (r/min) | 840 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |
