Track Drilling Rig for Photovoltaci Piles
- Qingdao other ports are also available
You May Like
-
Portable Automatic Drill Rig HF-360 Small Pile Drilling Machine
-
High Efficient, CE Certificate HF120W Small Land Drilling Machine
-
High Efficient, CE Certificate HF120W Portable Hydraulic Drilling Machine
-
HF-4T Core Drilling Machine With Competitive Price
-
HFDX-6 Full Hydraulic System Crawler Type Core Drilling Rig
-
Hydraulic Piling Rig Suppliers HF856A Rotary Drilling Rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | China | |
| Brand Name | HANFA | Model Number | HF130Y | |
| Usage | Other, Piles | Power(W) | 56kw | |
| Dimension(L*W*H) | 4460*1950*2460(mm) | Weight | 4360kg | |
| Certification | CE | Warranty | 1year for main machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

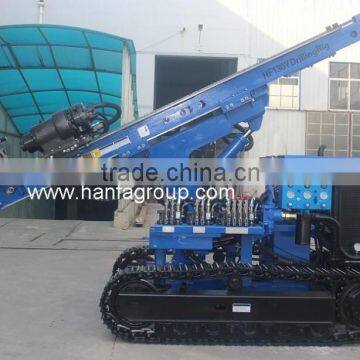

HF130Y Track Drilling Rig for Photovoltaci Piles using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection .
The drilling machine structure is compact,.whilethe mast has adjustable compensation function.when drilling,the mast supported on the ground, borehole stability is good.
HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costsand improve the efficiency

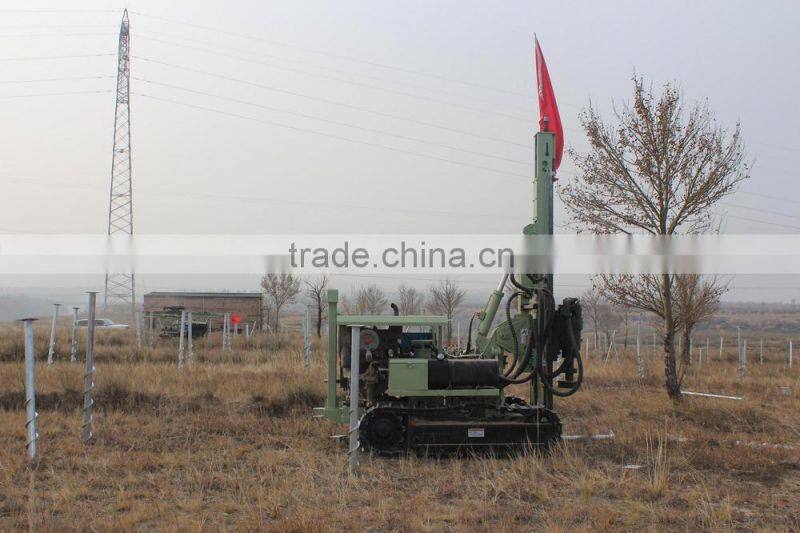

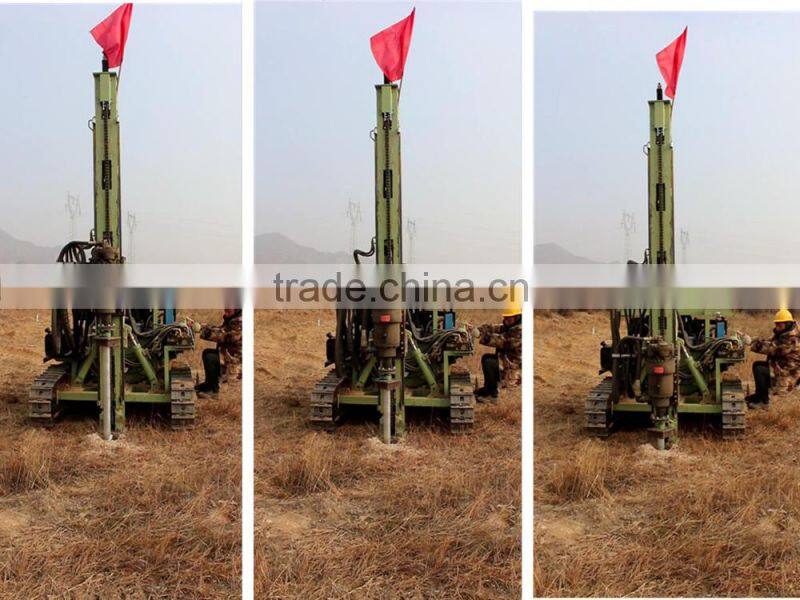

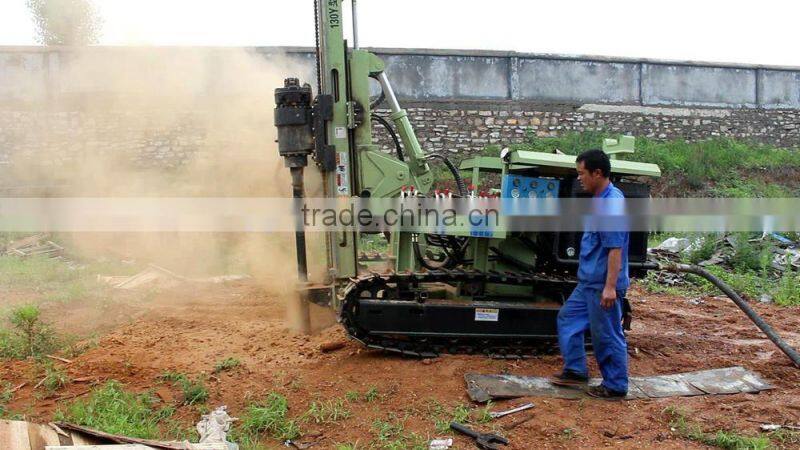

The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc. The Technical parameters as follow:
Technical parameters
Bore diameter(hammer) | 90-300mm |
Bore depth | 20-100m |
Air consumption | 10-26m³/min |
Air pressure | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Pipe diameter | 76mm/89mm |
For rock | F=6-20 |
Bore diameter(screw) | Max 400mm |
Bore depth | 0-30m |
Screw pipe diameter | 130-400mm |
Once promotion | 2000mm |
Skid pitch | 100° |
Swinging angle of skid | Left and right total 40° |
Rotation speed | 0-70r/min |
Host power | 56Kw |
Climb ability | 35° |
Dimension(L*W*H) | 4460*1950*2460(mm) |
weight | 4360Kg |
Walk speed | 0-2.5km/h |
