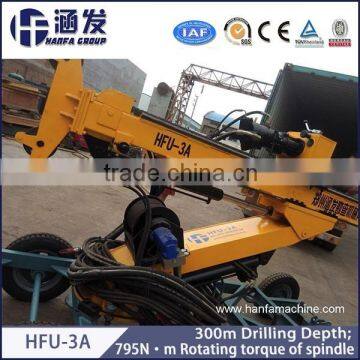

Quite Popular in the Market HFU-3A Underground Portable Core Drill Equipment

Technical parameters------ water well/core drilling rig

I. General Introduction of drill rig for coal

HFU-3 drill rig is mainly applied in the fields of coal, geology, metallurgy and engineering. It is used for drilling large dia. gas suction hole in mines, gallery as well as coal mine, water injection hole, and big dia. horizontal hole. It can meet the big dia. roller drilling, hard tungsten-carbide drilling and percussive-rotary drilling.

 II. Main Features of drill rig for coal

1. It is separate  in structure,  small in size, light in weight, flexible  in movement  and convenient  in operation.

2. The hydraulic pump is driven by explosion-proof electric motor through operating system, then the hydraulic pump enforces hydraulic motor to make drill head rotate, and at the same time, the movement of drill head is realized by oil cylinder & chain double speed mechanism.

3. Hydraulic chuck can satisfy the function of shackles and power-off protection.

4. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.

5. The swinging  arm and  mast  can do luffing  movement,  which  satisfy  the request  of multi-angle drilling.

6. The range of spindle rotating speed is wide and the torque is large.

III. Main Technical Specifications of drill rig for coal

1. Drilling depth:  Φ55mm(2.17inch) drill rod       300m(984feet)

Φ71mm(2.80inch) drill rod              200m(656feet)

2. Drill rod spec.:  Φ55×1500mm(Φ2.17×59inch) drill rod

Φ71×1500mm(Φ2.80×59inch) drill rod

3. The range of spindle rotating speed: 425-1280rpm

4. The max. rotating torque of spindle: 795 N·m(586 lbf·ft)

5. The working pressure: 25 Mpa(3626 psi)

6. Spindle stroke: 1600mm(63 inch)

7. The max. Lifting force of drill head: 62KN(13938 lbf)

8. The max. Feeding force of drill head: 33KN(7418 lbf)

9. The sliding stroke of mast: 495mm(19.5 inch)

10. The swing angle of mast bracket (left & right): 90°

11. The swing angle of arm (up and down): 100°

12. Power unit: YB225M-4(dIICT4)explosion-proof   electric motor 45KW(60HP)/1480rpm

13. Dimensions:

Main machine (L*W*H): 2950×950×1850mm(116×37.4×72.8 inch) Power unit (L*W*H): 1900×980×132mm(74.8×38.6×5.2 inch) Operation cabinet (L*W*H): 540×360×1080mm(21.3×14.2×42.5 inch)
