Multifunctional Water Well Drilling Rig
- Qingdao
- T/T
You May Like
-
HFP600 Magnetic Core Drilling Machine
-
HFP200 Hydraulic Core Drilling Machine Price
-
HFP200 Hydraulic Core Drilling Machine for Mineral Exploration
-
Core Drilling Machine for Sale
-
Best Sale!most Economic!HF-4T Easy Operate and Economic Core Drilling Rig
-
HF-20 Man Portable Hydraulic Drilling Rig for Geotechnical Exploration
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | HF core drilling machine price | Model Number | HF-44 core drilling machine price | |
| Usage | Water Well | Voltage | 220V/380V | |
| Power(W) | 37kW | Dimension(L*W*H) | 2730*1100*1860mm | |
| Weight | 2150kg | Certification | ISO | |
| Warranty | 12months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

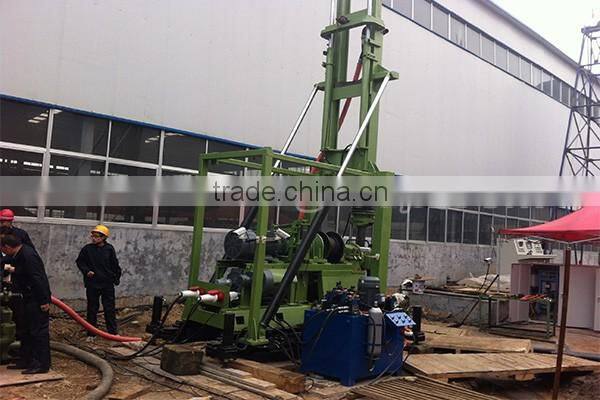

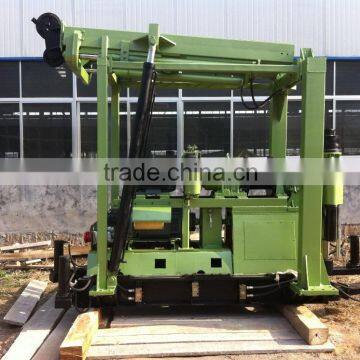

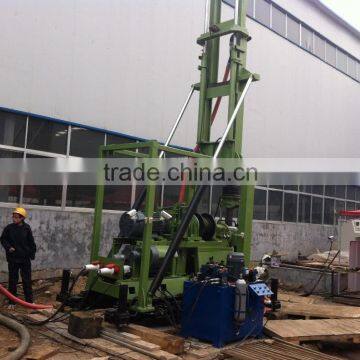

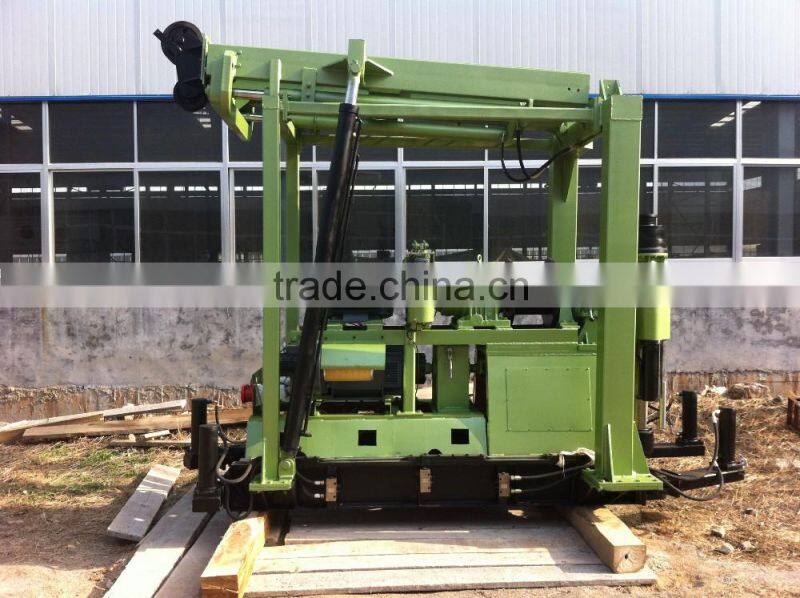

Multifunctional Water Well Drilling Rig
1.reasonable structure drilling rig
2.stable performance drilling rig
3.wide-range usage drilling rig

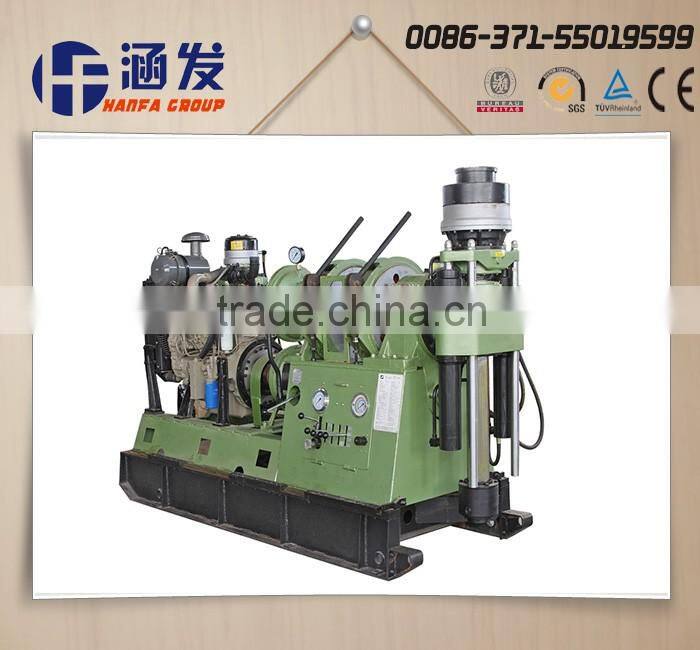

HF-44 core drill is the improved product based on HF-4 and HF-42 core drill. Besides all the facilities of HF-4, it is also extended the using range, and equipped with water brake. This core drill is mainly adapted to suit for core drilling wish diamond bit or tungsten-carbide tipped bit. It can also be used for exploration of engineering geology and hydrological drilling, and even for large hole foundation stake drilling. In addition to China, it is also sold in South-east Asia and Africa, and so on.
Specification
Drilling depth | Core drilling | 750--1400m |
| Foundation stake drilling | 100m |
| Hydrological drilling | 300m |
Drilling angle | 0-360° | |
Max. torque | 3.2kN.m | |
Spindle stroke | 600mm | |
I.D of spindle | 93mm | |
Max. Lifting capacity of spindle | 120kN | |
Max. Pressuring force of spindle | 90kN | |
Max. Hoisting force | 45kN | |
Power | 37kW | |
Dimensions(L×W×H) | 2730×1100×1860mm | |
Weight(without power unit) | 2150kg | |
Related product

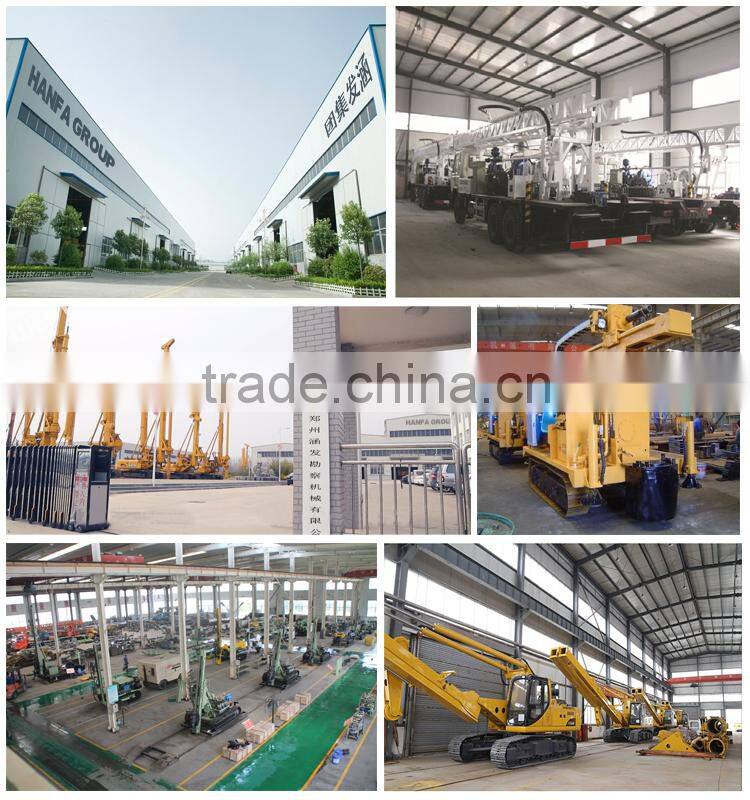

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1.New machine provides technical train.
2.Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3.When the machine should be maintained,you will receive the reminding from us.
4.According to different geological conditions,we will recommend different construction plans for you.
5.Remind you which are wearing parts,so you can prepare enough.
6.24 hours respond to your quality problem.
7. Other customer's reasonable request
1,Are you trading company or manufacturer?We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality? All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
