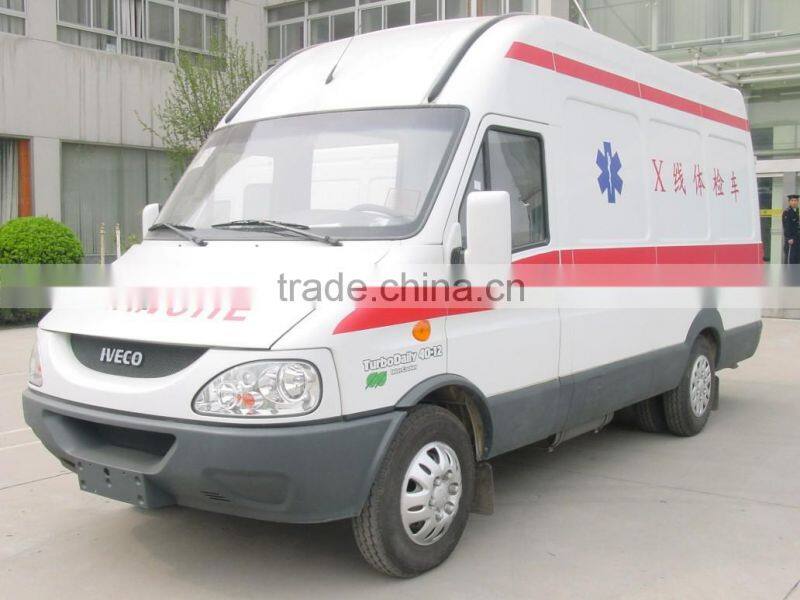

Mobile clinic Medical Vehicle x-ray examination bus (IVECO)

Model

Main parameters of finished vehicle and engine

Main Parameters of Chassis

Standard Configurations of Vehicle

Optional X-ray machine

CQK5041XJH3

X-ray medical vehicle

Overall Dimensions(mm): 5990×2000×2740

Dimensions(mm) of medical cabin:3600×1750×1940

Door quantity: 3

Wheel tread (front/rear):1695/1540

Wheelbase(mm):3310

Axle Qty:2

Axle Load(kg):1620/2660

Engine model:SOFIM8140.43S3

Fuel type: Inline 4 cylinder and 4 strokes, direction injection, water-cool , inner cooler, supercharged ,diesel engine

Engine Displacement(ML):2798

Power(kw):92

Min Ground Clearance(mm):≥222

Minimum turning radius:6.05m

Discharge Standard: GB17691-2005 China Ⅲ,GB3847-2005

Chassis:NJ6593ER6

Steering system: steering wheel

Gearbox: manual, 5 speed

Drive: rear drive

Brake: front wheel disc brakes

Max Speed:125Km/h

Tyre:6.50R16C

Tyre Qty:6

Wheel Hub:steel material

Suspension (front/rear): Independent suspension/ balance bar

Fuel capacity:(L):70

GVW(kg):3450

Complete vehicle curb mass(kg):2950

Approach angle/departure angle(°):20/10.5

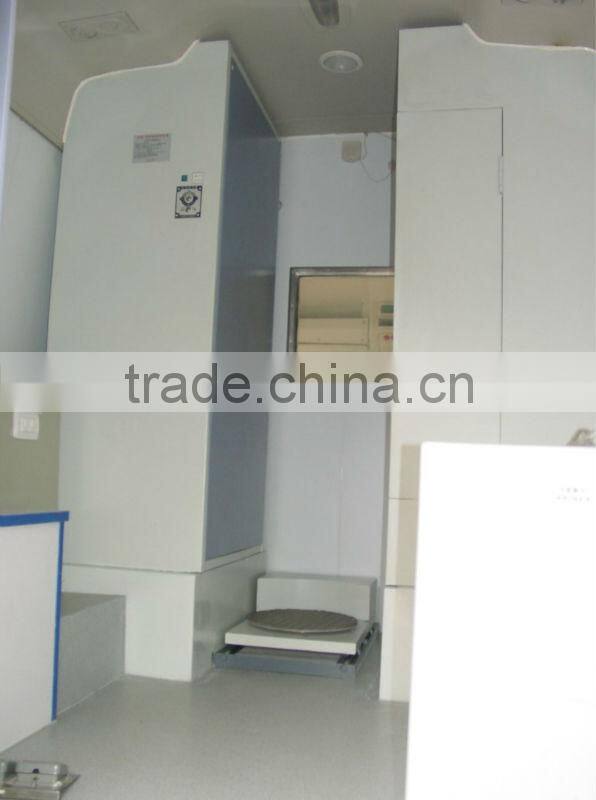

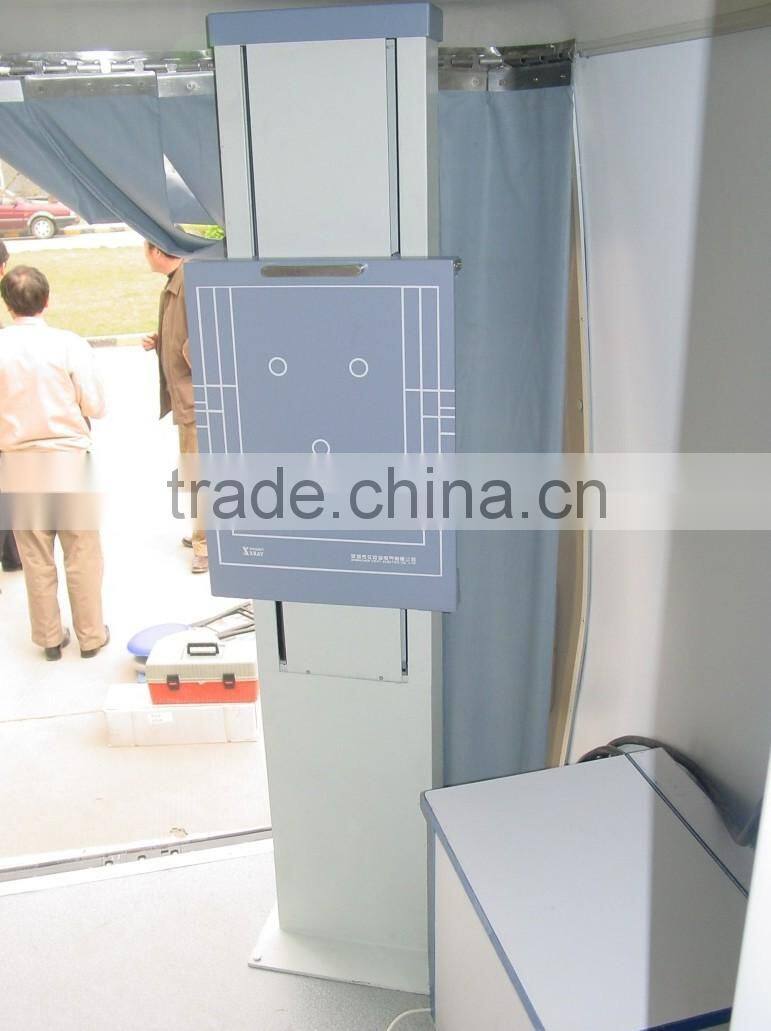

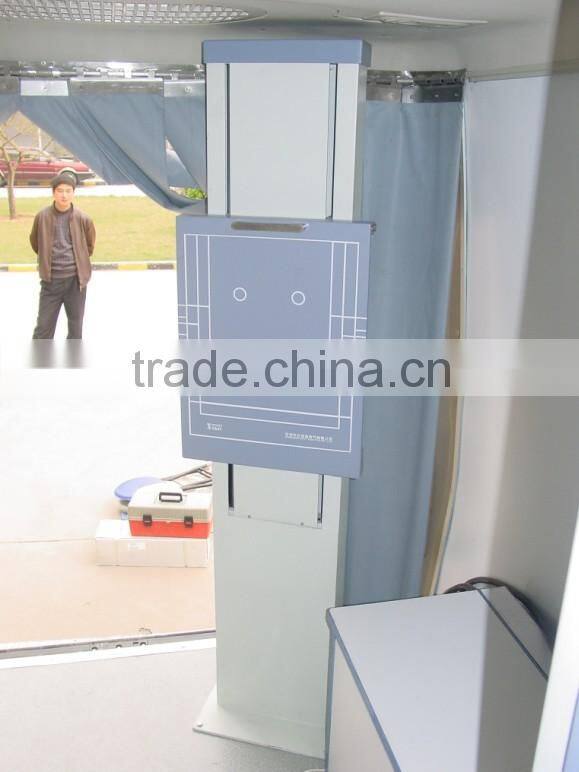

Dual Column X-ray machine mounted in vehicle (Toshiba image intensifier): 1 set

Radiological Protection in Radiation area conforms to GB GBZ130-2002; x-ray leak≤2.5uGy/h

Manual rear-view mirror

Power windows

Radio

Hands-free intercom system mounted in driver cab and medical cabin

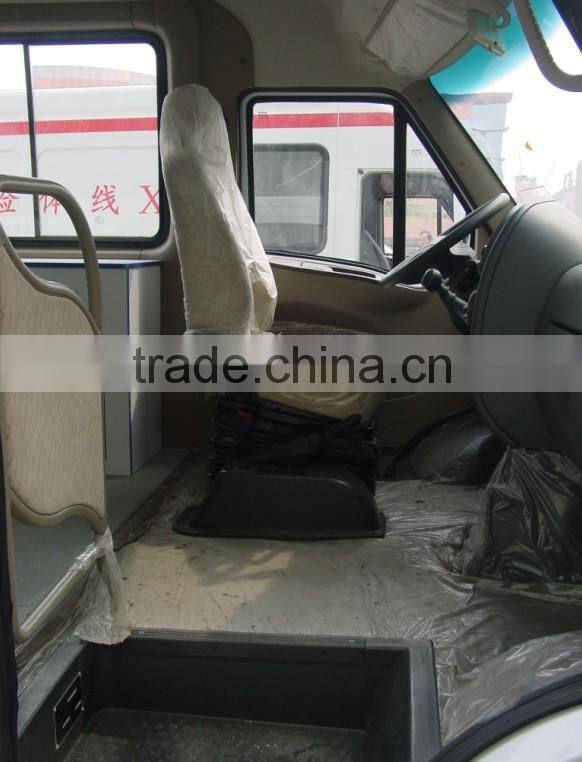

Driver chair

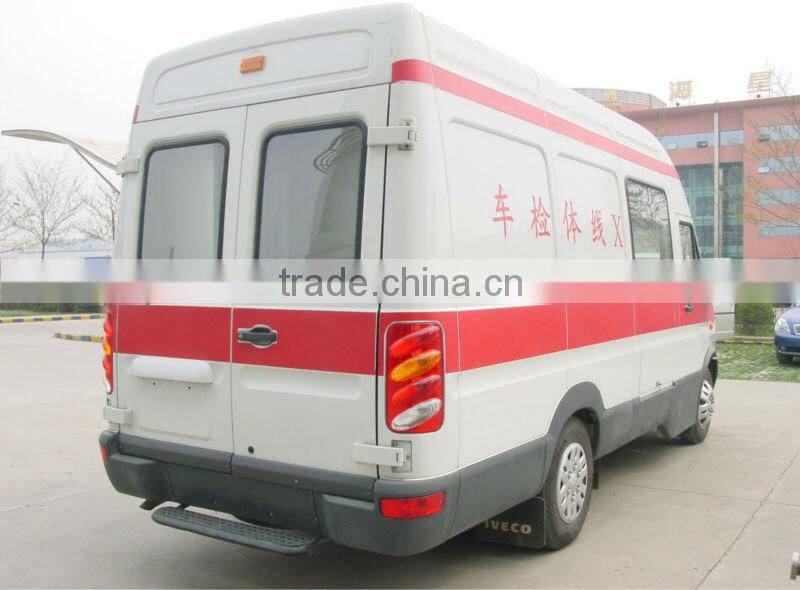

Rear door: double open doors with pedal step

Non-independent air-conditioning installed in vehicle. The air conditioning has the function of air change, sterilization and air filtration

Independent water heating:1; Foreside windshield with defrost function.

Wall-mounted A/C :1pc.

Ventilation system installed to the roof of x ray cabin

Illumination light for running vehicle :2pcs, 24V/20W

Illumination light for parking vehicle: 7pcs, 220V/13W

220V red safety light mountedat radiation area: 1pc

Flashing warning light bar installed to outside roof of vehicle

Loud-speaker: 100w

30m mobile cable

Outside illumination lights and flashing marker lamps installed to four sides of vehicle roof

220V x-ray warning light installed to partition wall of fluoroscopy cabin

220V ultraviolet sterilization lamp installed to fluoroscopy cabin and general examination cabin

Interior floor is imported medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

Intelligent inverterd power supply: 24V/220V

Switch box for the management of power supply in whole vehicle: 1 set

Control panel for power supply for all equipments in vehicle: 1 set

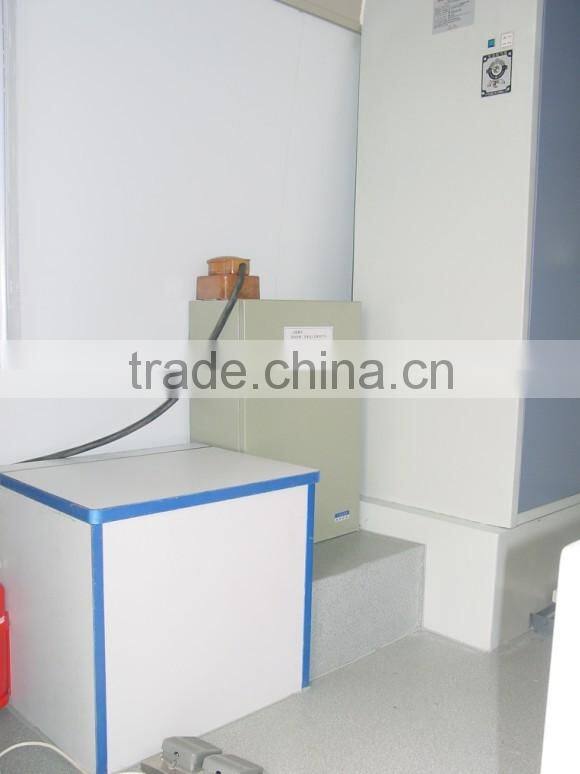

High pressure generator and tube made in China

20kw(300mA)only fluoroscopy

30Kw(400mA)only fluoroscopy

50Kw(500mA)only fluoroscopy

CPI Canada generator and TOSHIBA tube

30Kw(400mA)only fluoroscopy

50Kw(630mA)only fluoroscopy

SEDECAL Spain generator and TOSHIBA tube

45Kw(500mA)only fluoroscopy
