AJ-7420 High Performance User-friendly Control Long Lifetime Latest Design Handheld Pulse Oximeter

Specifications

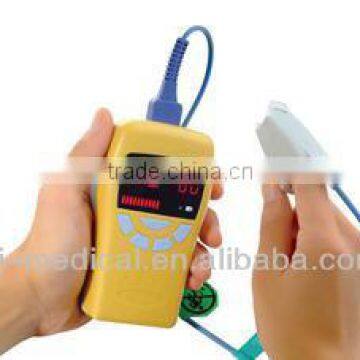

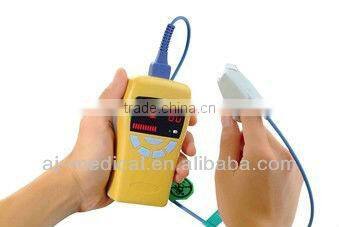

Handheld Pulse Oximeter AJ-7420

Feature

The monitor is a non-invasive, handheld patient monitor. It operates only on Common 1.5V AA alkaline or rechargeable battery power. It is compact, small, light, and easy for learning and handling. It is suitable for monitoring adult, pediatric, infant and neonate patients. It is widely used in the hospital’s operation room, ICU, clinic section office, out-patient department, sickroom, emergency treatment, and the recovery and health care organizations, or in the family nursing and in the process of transporting patients. It can also apply to animals selectively.

Parameters measured by the monitor include: arterial oxygen saturation (SpO2), pulse rate (PR), pulse strength. The monitor measures these parameters through a SpO2 sensor and displays them on the LED screen after certain further processing.

The monitor is operated and controlled by the buttons on the front panel. It adopts LED in displaying measurements and in supplementary status indication.

The monitor has the following functions:

*Measuring: Display of SpO2, PR and pulse strength.

*Prompting: Battery capacity.

*Alarm: Judgment of exceeding the limits, Audio and visual alarm.

*Power saving: Automatic shutdown when no monitoring.

Net Weight: 0.13kg

Gross Weight: 0.8kg

Package Size: 210x160x70mm

Color: Yellow or Blue can be selected

Standard accessories

One SpO2 adult finger probe

Specifications

1.General

Monitoring Parameters:SpO2,PR,Pulse strength

Signal sockets:SpO2 socket

2.Display screen

Type:Red LED

Display area:56mm×36mm

Size:120mm×63mm×32mm

Weight:125g(not include sensor and battery)

3.Features

Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement flashes on the screen.

Prompting: Indicator of battery capacity.

Power saving: The monitor will automatic shut down when no monitoring for 3 minutes.

4.Electrical specifications

Working Voltage:D.C. 2.8V~D.C. 5.4V.

Battery

Type:Three common 1.5V AA alkaline or rechargeable batteries

Run Time:7-hour continuous operation with a new battery (environment

temperature is 25°C)

5.Environment

Temperature

Operation:0 ~ 45 (°C)

Transportation and storage:-20 ~ 60 (°C)

Humidity

Operation:15% - 95 %( noncondensing)

Transportation and storage:10% - 95 % (noncondensing)

Altitude

Operation:86 KPa ~106 KPa

Transportation and storage:50KPa~106 KPa

6.Parameter Specifications

SpO2

Patient:Adult, pediatric, infant, neonate, animal

Range:35 - 99% Resolution:1 %

Accuracy:±2 % (70% - 99%), unspecified (0% - 69%)

PR

Range:30~250bpm

Resolution:1bpm Accuracy:±2bpm
