Mini 5 Inch Touch Screen Multi-parameter Patient Monitor Medical Electronic Apparatus AJ-3000Palm

Specifications

  5 inch Touch Screen Multi-parameter Patient Monitor:

1.ECG, NIBP, SPO2, Pulse Rate and Temperature. Waveform: ECG and SPO2 Waveform: ECG and SPO2 waveforms.

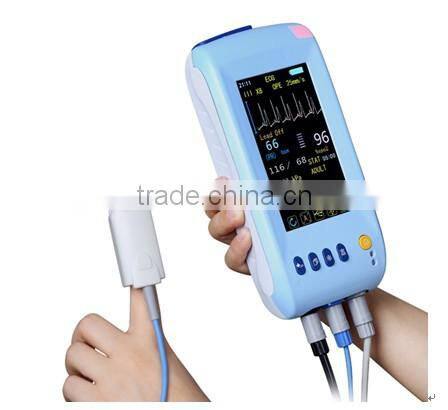

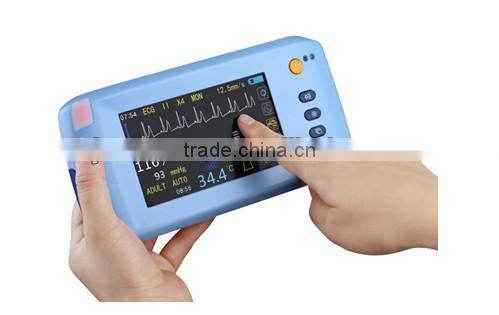

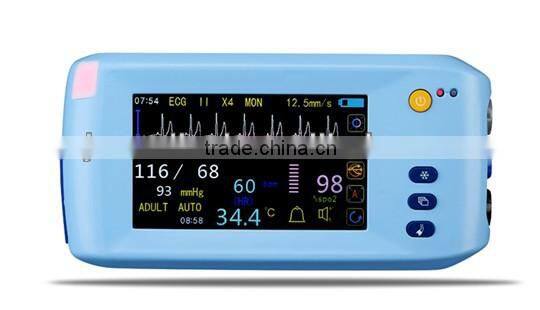

The picture:

Introduction

* All-in-one designed module with 5 standard parameters: ECG, NIBP, SPO2, Pulse Rate and Temperature. Waveform: ECG and SPO2 waveforms.

* Free matched two sets advance software is for data downloading and tele-monitoring, and has convenient & rapid Bluetooth printer can print data and ECG waveform.

* This machine can meet all requirements and meet requirements of hospital & other departments in emergency treatment, first-aid, rescue, etc.

Function

* Touch screen, 5.0 inch color TFT-LCD, simple for operating, quickly & accurately measure the data;

* Build-in rechargeable Li-battery, up to 15hours running time, support AC and DC power;

* Adjustable audible and visual alarms, and sensor off alarm;

* Long time monitoring and sleeping monitoring;

* Easy to carry, suitable for ambulance center, has the stand for fixing.

Prior

* Storge and review data up to 9999 user ID and 3888 groups via Trend Graph and Trend List;

* USB and Bluetooth data upload;

* Horizontal and vertical display selectable;

* Big font screen interface is easy to observe;

* Back light can be adjusted;

* Free advanced software;

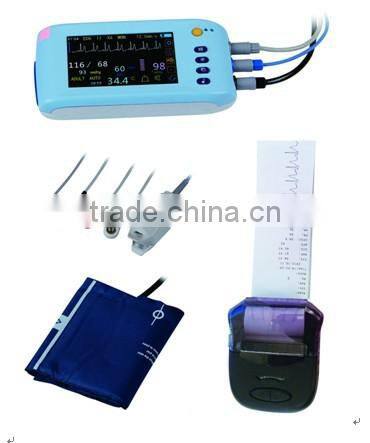

* Optional Bluetooth printer to print the waveform and data out.

Technical Specifications

* ECG

Input: 3-lead ECG cable, standard AAMI cable connector

Lead selection: I, II, III

Gain selection: x1, x2, x4, x8

Sweep speed: 12.5mm/s, 25mm/s, 50mm/s

Bankwidth: 05Hz-40Hz(for monitor or operation), 0.05Hz-100Hz(for diagnosis)

Calibration signal: 1mV

Protection: Against electrosurgical Interference and Defibrillation

*Heart Rate

Measure range: 20bpm-300bpm

Accuracy:±1bpm

Resolution: 1bpm

Alarm mode: Audible and visual alarm

*Oxygen Saturation(SpO2)

Range: 0%-100%

Accuracy: ±2%(70%-90%),±3%(70%-89%),unspecified(<70%)

*Pulse Rate

Range:20bpm-300bpm

Accuracy: ±1bpm

*Temperature

Measuring Range:0°C-50°C

Resolution: 0.1°C

Accuracy: ±1°C

*Operation Environment

Temperature:0°C-45°C

Humidity: 30°C-85°C(non-condensing)

*Power Option

Build-in Li-ion rechargeable battery, 3.7V/7200mAH

AC power:100V-240V,50Hz-60Hz,5VA

*NIBP

Measure Method: Oscillometric

Measurement mode: Manual, Auto, STAT

Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,60Min

Measuring period in STAT mode: 5 Min

Measurement Type: SYS, DIA, MEAN

Resolution: 1mmHg

Over-pressure protection: Yes

*Dimension

209x104x47.5mm

*Net Weight

655g

*Bluetooth Printer Paper

Thermal paper 58mm*20m,Paper roll diameter ≤Φ 33mm
