AJ-3400 Vital Signs Patient Monitor / NIBP Patient Monitor

Specifications

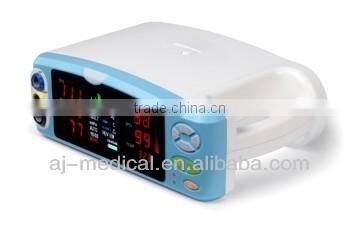

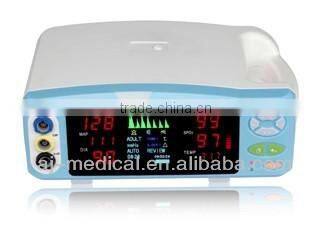

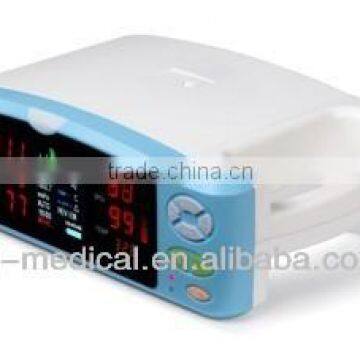

Vital Signs Patient Monitor / NIBP Patient Monitor AJ-3400

NIBP+SPO2+TEMP+PR (4 Parameters) Vital Signs Patient Monitor AJ-3400

Note: Rapid Bluetooth printer is available for option.

Printer Paper: Thermal paper 58mm ,20m, Paper roll diameter ≤Φ 33mm

Features

Four parameters: NIBP, SpO2, Pulse Rate, Temperature

SpO2 waveform, PR strength display

2.8 inch color LCD with real time display

Storage/Review trend data up to 3888 groups, data save time interval settable

Audio and visual alarm when parameters exceeded and sensor-off

Built-in rechargeable Li-ion battery, up to 4 hour running time

Automatic shutdown for power saving, shutdown time interval settable

Via USB to connect with the computer, unique software for telemonitoring

by transmitting data synchronously via internet

Battery capacity indicatior and prompt when battery low

Technical Specifications

NIBP

Measure Method: Automatic oscillometric

Patient: Adult and Pediatric

Measurement unite: mmHg/kPa selectable

Measurement mode: Manual, Auto, STAT

Measurement Type: SYS, DIA, MAP

Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45,60Min

Measuring period in STAT mode: 5 Min

Measure range:

Adult:30~2550 mmHg; child: 30~160 mmHg

Accuracy: 1 mmHg

Alarm limits range:

SYS : Upper limits70~250 mmHg,     Lower limits 60~180 mmHg

DIA : Upper limits 40~200 mmHg,     Lower limits35~150 mmHg

MAP : Upper limits 60~230 mmHg,     Lower limits 50~160 mmHg

SpO2

Measure Range: 35~100%

SpO2 Accuracy: 2%(70~99%), 3%(40~70%)

Pulse Rate Range: 0~254 bpm

Pulse Rate Accuracy: 1 bpm

Alarm limits range:

SpO2 upper limits : 95~100%   lower limits: 85~96%

Pulse Rate:keep up with the heart rate

System Specifications

Alarm ON/OFF: controlled by general switch and parameter switch (two levels)

Display mode: LED and 2.8’ color LCD screen

Trend data: 3888 groups of SpO2, TEMP,SYS, DIA trend data, The record time interval can be set to 5 Sec. to 120 Sec. , so that the record time rang can be up to 128 hr.

AC power adaptor

Input: AC 100~240V, 50/60Hz, 0.7A

Output: DC 5V,2.5A

Internal battery

Type: 2800mAh/3.7V Li-ion rechargeable battery

Operating Time: 6 hours of stand-by time with a full battery.

Recharge time: 8 hours

Dimension:280mm×190mm×100mm

Net Weight : 1000g
