Flanged Y-strainer Ductile Iron With Drawing
- China main ports
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Other, filter | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Other, water/oil/steam/petroleum products | Port Size | DN40-500mm | |
| Place of Origin | Shanxi, China | Brand Name | Allwin |
Product Description
Specifications
PN16 Y type strainer1.material: DI/CI
2.standard: DIN/EN
3.DN:40-500mm
4.suitable media: water, oil, steam,etc.

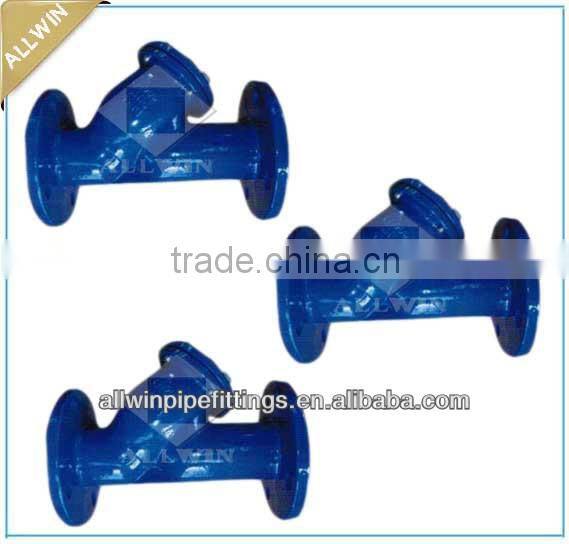

flanged Y-strainer ductile iron with drawing
Description:
Product Information:
1.material: DI/CI
2.standard:
| face to face | DIN3202F1; EN558-1 |
| body flange drilling | DIN2533;EN1092-2 PN16 |
| test standard | DIN3230 PN10/16; EN12266-1 |
3.size: DN40-500mm
ing temperature: -20°C-120°C
5.applicable meda: water,oil,steam,petroleum product.
6.main parts&material
| part | material |
| body&bonnet | DI/CI |
| filter mesh | SS |
| blow off flug | DI |
| gasket | graphite |
| bolt&screen | SS |
7.painting: epoxy painting/FBE/zinc coating or as per your requirement
lor: blue/red/black or as per your requirement
9.packing details: standard wooden cases or according to your requirements
Company Information:
Allwin Pipe Fittings Co.,Ltd is a private enterprise specialized in exporting various kinds of pipes, pipe fittings, couplings and adaptors, valves, man-hole covers and gratings, fire hydrants,and strainers,etc.(mainly ductile iron&cast iron)
We can supply all above products with different standards and specifications. Our products have been wdely exported to many places in the world, such as Europe, Southeast Asia, USA, Middle East, African countries, China Hongkong, and Taiwan,etc.
We promise that you can get the wanted products with best quality in the most competitive price and the most satisfied services.
If you are intrested in our products, pls contact me asap.
