Hydraulic Water Lever Control Valve
- TIANJIN
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | DN50-DN600 | |
| Place of Origin | Shanxi, China | Model Number | 100X | |
| Brand Name | ALLWIN or OEM |
Product Description
Specifications
Hydraulic Water Lever Control Valve1. Body material: cast iron/ductile iron
2. Pressure: PN10-25
3. Size range: 50-600mm

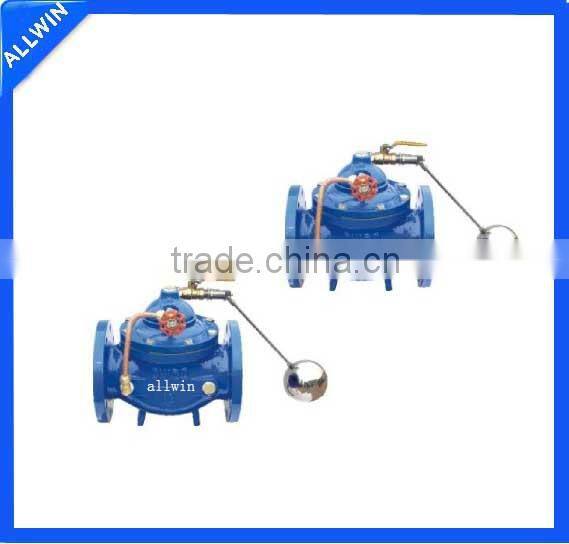

Hydraulic Water Lever Control Valve
Overview
100X remote float valve is hydraulic control valve with multi-functions, it is installed in the inlet
of the pool or overhead tower, when the watcr level reaches to the set height, the main valve closes
the inlet through controlling by float guide valve and stops supplying water; when the water level
drops, main valve opens the inlet through the float guide valve opening and closing and the pool is
refilled with water, automatic control comes true. The controlling of the water level is precision and
can't be disturbed by pressure.
Specifications:
Model number | 100X |
Structure | Diaphragm |
Working temperature | -10°C- 80°C |
Working pressure | PN10/PN16/PN25 |
Tubes/pilot valve | Brass |
Seat | Brass |
Spring/stem | Stainless steel |
Bolts/washer | Stainless steel |
Painting | Epoxy powder coated min 250μm |
Body/Cover material | Cast iron/ductile iron |
Medium | Water |
Port size | DN50-DN600 (2"-24") |
End flange connection | BS EN1092 PN10/PN16/PN25; ANSI Class125/150 FF/RF |
Place of Origin | Shanxi, China (Mainland) |

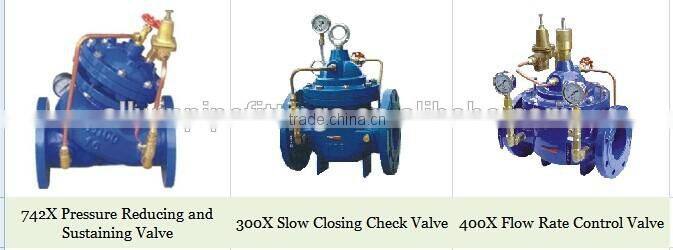

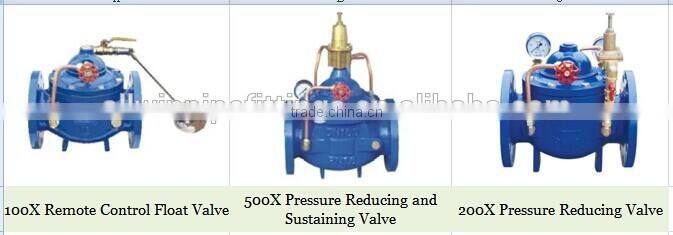

More Models for Your Choice:
