Long k9 Ductile Iron Pipe EN545/ISO2531 From China
- china main ports
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanxi, China | Brand Name | allwin | |
| Model Number | DN80-DN1600mm | Length | 6m/5.7m | |
| Standard | ISO2531 EN545 | Application | WATER | |
| Diameter | dn80-dn2600 | |||
| Hardness | 230 | Pipe Wall Thickness | k9 | |
| Pull Strength | 420 | |||
| Type | Other, socket, socket plain |
Product Description
Specifications
ductile iron pipe K91.range dn80mm-dn2600mm
2.standard: ISO2531/EN545/EN598
3.T type
ductile iron pipes k9
Product Description:
| material | ductile iron/cast iron |
| standard | ISO2531/EN545/EN598 K9 |
| DN | 80mm-2600mm |
| type | T |
| effective length | 6m/5.7m |
| coating | inner:cement mortar lining as per ISO4179 |
| outer:zinc coating(at least 130g as per ISO8179)+bitumen painting;FBE,etc. | |
| mechanical properties | tensile strength ≥420N/mm² |
| yield strength ≥300Mpa | |
| bending strength ≥590Mpa | |
| elongation:DN80~1000mm≥10%;DN12000~600mm≥7% | |
| hardness ≤230HBS | |
| ring | NBR/SBR/EPDM as per ISO4633 |
Dimensions:
Test:
| DN(mm) | hydro test for k9 pipes |
| 80-300 | 5.0Mpa |
| 350-600 | 4.0Mpa |
| 700-1000 | 3.2Mpa |
| 1100-2000 | 2.5Mpa |
| 2200-2600 | 1.8Mpa |
Company Infomation:
Allwin Pipe Fittings Co.,Ltd is a private enterprise specialized in exporting various kinds of pipes, pipe fittings, couplings and adaptors, valves, man-hole covers and gratings, fire hydrants,and strainers,etc.(mainly ductile iron&cast iron)
We can supply all above products with different standards and specifications. Our products have been wdely exported to many places in the world, such as Europe, Southeast Asia, USA, Middle East, African countries, China Hongkong, and Taiwan,etc.
We promise that you can get the wanted products with best quality in the most competitive price and the most satisfied services.
Our advantages:
(1)good quality: high strength ,lighter than gray iron,good corrosion resistance,no furring,small flow resistance,easy fixing,long life time ;
(2)most competitive price;
(3)best service

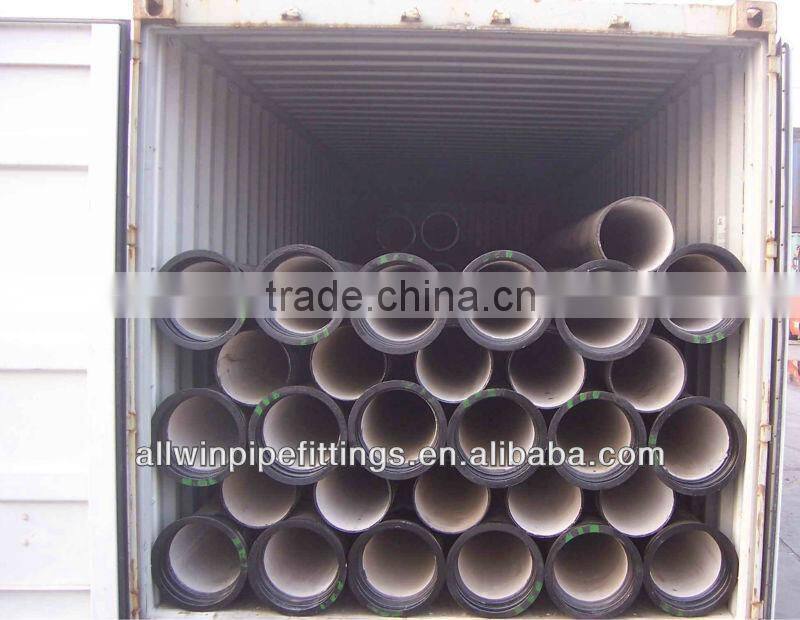

Packing: Pipes from DN100 to DN300 be bundled with steel belts, others are in bulk ship,5.7M by 20' or 40' containers.
Payment term: L/C, T/T.
