Home > Products > ductile iron pipe > Ductile Iron Socket Spigot End Pipe Class K9

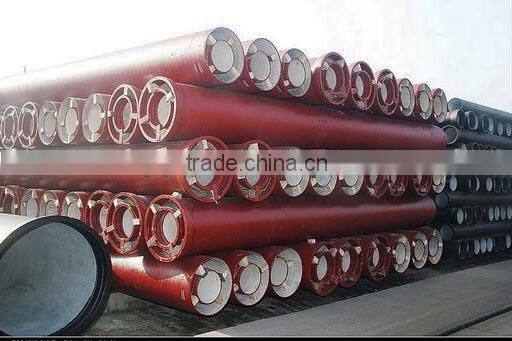

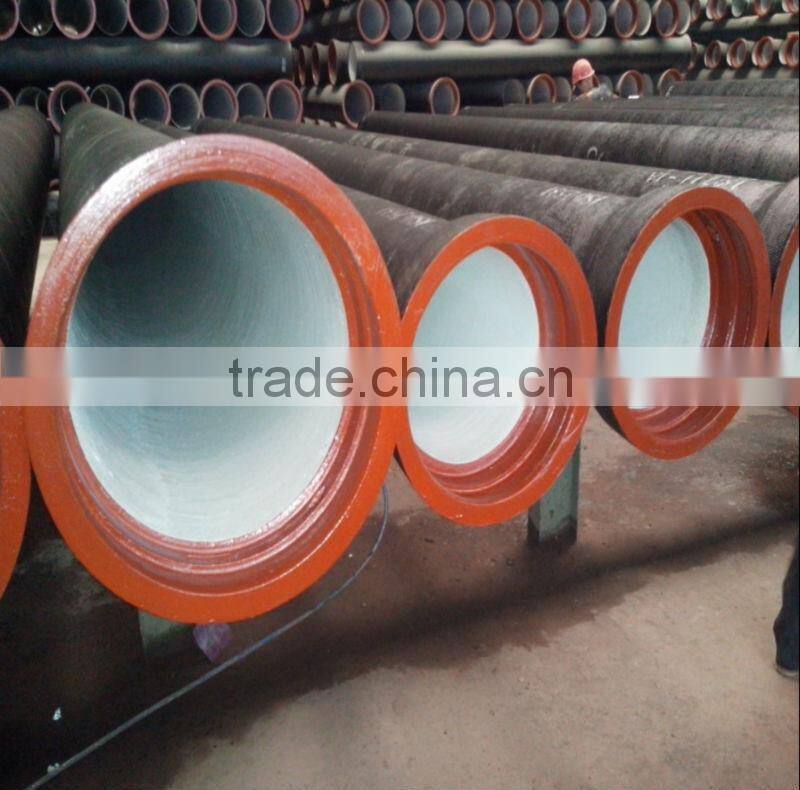

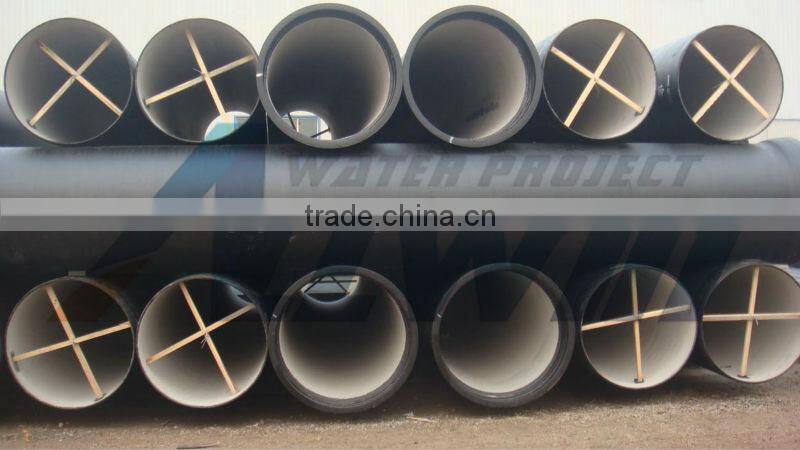

Ductile Iron Socket Spigot End Pipe Class K9
- TIANJIN/QINGDAO/LIANYUNGANG
- T/T Credit Card
You May Like
Product Details
| Material | Iron | Technics | Casting | |
| Type | Other, pipe | Place of Origin | Shanxi, China | |
| Model Number | DI pipe | Brand Name | allwin or OEM | |
| Connection | Other, push-on | Shape | Equal | |
| Head Code | Other, round |
Product Description
Specifications
Ductile Iron Pipe1.ISO2531&EN545 certificated by SGS
2.DN80-DN2600
3.T-type K9
4.lining acc. to ISO4179 &ISO8179
Ductile Iron Socket Spigot End Pipe Class K9
- ISO2531&EN545 ductile iron pipe certified by SGS
- DN80-DN2600
- T-type K9 Class
- Effective length: 6m or 5.7m
- Gasket: EPDM or SBR
- Outside coating: zinc painting+bituminous painting
- Inside lining: high alumina cement mortar lining
- Suitable for water distribution
Specifications of ductile iron pipes we supply:
1) Standard: ISO2531, BSEN545 or EN598
2) Effective length: 6m or 5.7m
3) Inner cement: Ordinary portland cement according to ISO4179, sulphate resistant cement or high alumina cement mortar lining
4) Outside coating: Zinc coating(≥130/m2) and bitumen paiting or epoxy paiting(≥70μm) according to ISO8179
5)Quality Control:Matallqgraphic examination;Spectrum Analysis;Hardness Test;Tensile Test;Crush Test.
6) Diameter: DN80- DN2600
7) Joint type: T joint
8) High strength ,lighter than gray iron,good corrosion resistance,no furring,small flow resistance,easy fixing,long life time
9) Testing: factory inspection report, SGS inspection and the third inspection party;
10) Class: K8, K9

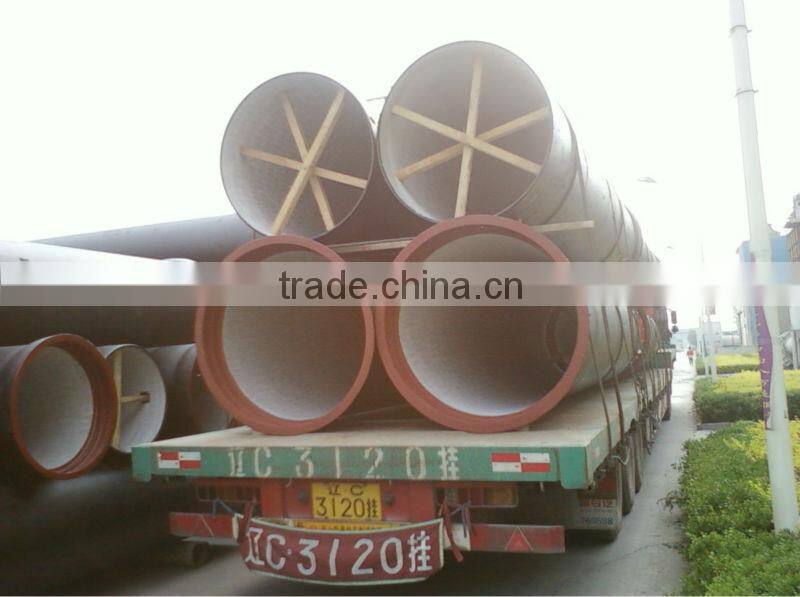

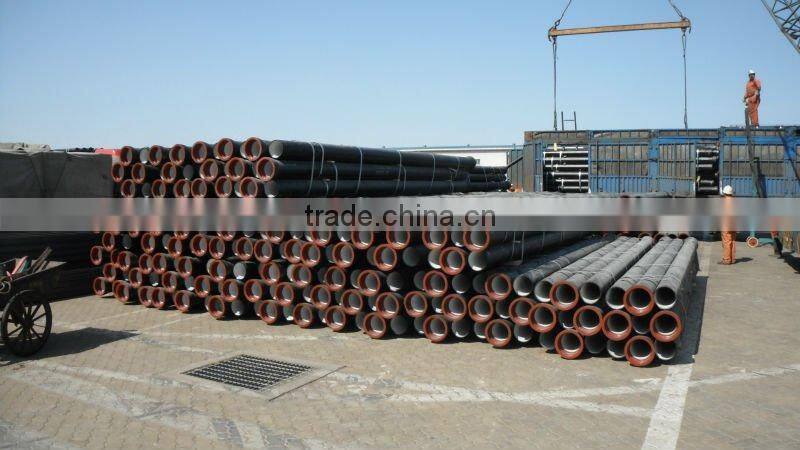

11)Packing:DN100-DN300: bundles; DN350-DN2600: in bulk ship
12) Gasket: EPDM or SBR
