Product Description
Manual Goniometer Stage, Angle Range +/-15°

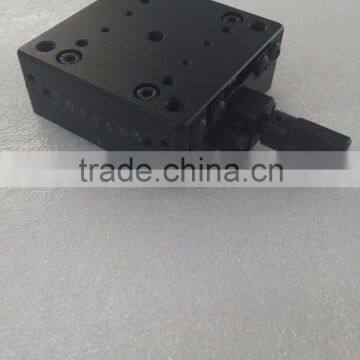

goniometer Z stage, goniometric stage, positioning goniometer
Production Feature:
*The stage can rotate in small angle
*Dovetail guide design for high loading and accuracy
*The rotation center will be same when it use together with 05SJ15
*Wheel screw can fix the position
*The stages with regular holes for combine with other products easily
Model Number | J04SJ15 |
Dimension | 65mm x 65 mm |
Angle Range | +/-15° |
Height of Rotary Center | 50 mm |
Deviation of Rotary Center | 0.05 mm |
Drive | Worm Gear |
Guide | V Guide + ball screw |
Position of Drive | In center |
Min Scale | 1° |
Min Reading | 5’ |
Min Adjustment | 30” |
Deflection | 200” |
Tilt | 200” |
Loading | 6kg |
Weight | 0.46kg |
Material | Aluminum |
Surface Treatment | Black-Anodized |
